| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| Current Rating (Maximum) | |
| DC Resistance (DCR) | |
| DC Resistance (Maximum) | |
| Factory Pack Quantity | |
| Frequency | |
| Height | |
| Inductance | |
| Inductance Tolerance (Unspecified condition) | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Operating Temperature (Minimum/Maximum) | |
| Q @ Freq | |
| Q Factor (Minimum @ 100 kHz) | |
| Q Factor (Minimum) | |
| Resistance to Soldering Heat | |
| Saturation Current (ISAT) | |
| Self Resonant Frequency (Nominal) | |
| Shielding | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width |

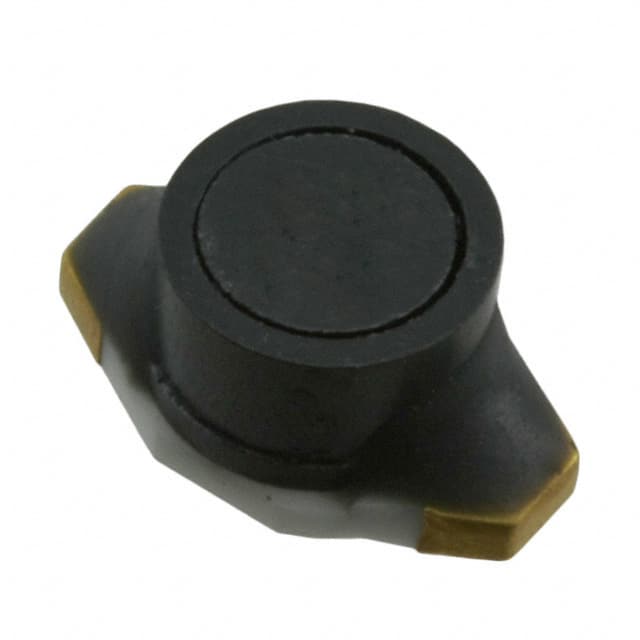

The Bourns SRR6603-151ML is a shielded power inductor from the SRR6603 series, designed for demanding applications. It offers a nominal inductance of 150 µH with a tolerance of ±20% and a Q factor of 40 at 100 KHz. The inductor has a maximum DC resistance of 590 mOhms and a rated current of 260 mA.
This component is suitable for use in the input/output of DC/DC converters and power supplies for portable communication equipment, camcorders, LCD TVs, and radios. It features a drum core and wirewound construction with a ferrite material, providing effective shielding.
The SRR6603-151ML is designed for surface mounting and has dimensions of 6.60mm in length, 4.40mm in width, and 3.00mm in height. It operates within a temperature range of -55°C to +125°C, with resistance to soldering heat up to 250°C for 10 seconds. The inductor is supplied on a reel, with a standard pack quantity of 600 pieces.
Key electrical characteristics include a self-resonant frequency of 9 MHz and a saturation current of 0.1 A. The component is RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 150 µH.
The maximum DC current rating is 260 mA.
The maximum DC resistance is 590 mOhms.
The operating temperature range is -55°C to +125°C.
It is supplied on a reel with 600 pieces per reel.
