| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
33 pcs
|
33 pcs | On Request | 1 | On Request | On Request | 1552 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Self Resonant Frequency | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

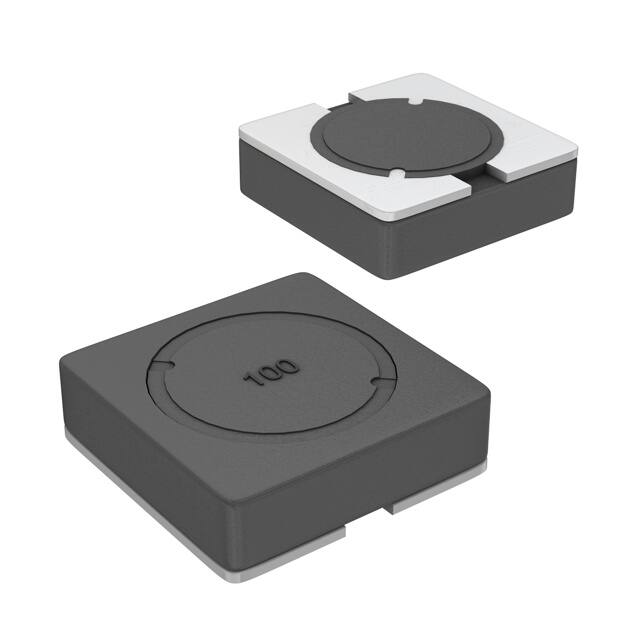

The Bourns SRR5018-470Y is a shielded power inductor from the SRR5018 series, designed for applications requiring stable inductance and current handling. It offers a nominal inductance of 47µH with a tolerance of ±30% and a typical Q factor of 8.9 at 2.52MHz.
This inductor is constructed with a ferrite core and wirewound type, providing a typical saturation current rating of 600mA and a rated RMS current of 520mA. The DC resistance is a maximum of 550mOhm. Its operating temperature range is -40°C to 125°C.
Designed for surface mounting, the SRR5018-470Y has a compact size with dimensions of 5.80mm x 5.80mm and a height of 2.00mm. It is supplied on reels of 500 pieces, suitable for automated assembly processes.
Key applications include input/output of DC/DC converters and power supplies for portable communication equipment, camcorders, and LCD TVs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 47µH.
The rated current is 520mA (RMS) and the saturation current is 600mA (typical).
The maximum DC resistance is 550mOhm.
The operating temperature range is -40°C to 125°C.
The dimensions are 5.80mm in length and width, with a height of 2.00mm.
It is supplied in a nonstandard package, typically on reels of 500 pieces.
