| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Material (Nominal) | |
| Current | |
| Current Rating (Amps) | |
| Current Rating (Typical/Maximum) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Inductance Tolerance (Nominal @ 100 kHz) | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Q Factor (Typical @ 2.52 MHz) | |
| Saturation Current (Typical) | |
| Self Resonant Frequency (Typical) | |
| Shielding | |
| Tolerance | |
| Type | |
| Width | |
| dcr (Typical) |

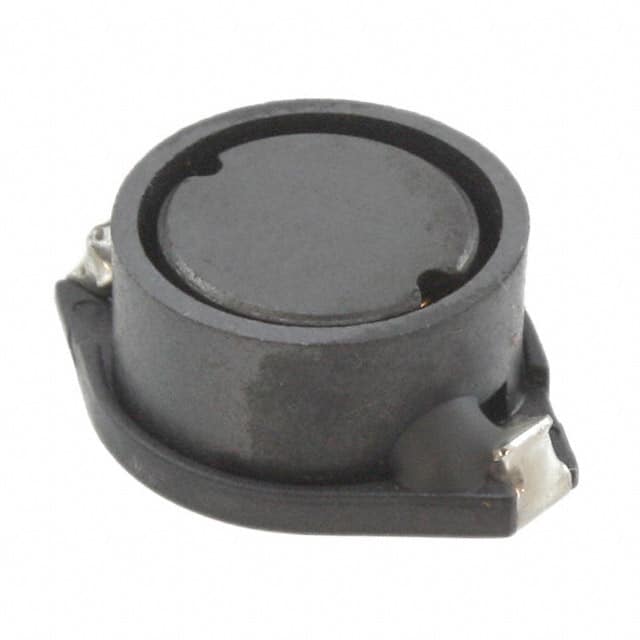

The Bourns SRR1806-470M is a shielded power inductor from the SRR1806 series, designed for efficient power management applications. It offers an inductance value of 47 µH with a tolerance of ±20% and a typical DC resistance of 110 mΩ.
This inductor is rated for a continuous current of 2 A and a saturation current of 4.2 A, making it suitable for input/output of DC/DC converters and power supplies for portable communication equipment, camcorders, and LCD TVs. The operating temperature range is -40°C to +125°C.
Constructed with a ferrite core and enameled copper wire, the SRR1806-470M features a surface mount package with dimensions of 18.3mm x 14.0mm and a height of 7.10mm. It is supplied on reels of 250 pieces.
Key electrical characteristics include a Q factor of 40 at 2.52 MHz and a self-resonant frequency of 8 MHz. The component is RoHS3 compliant and has a Moisture Sensitivity Level of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the SRR1806-470M is 47 µH.
The SRR1806-470M has a rated current of 2 A and a saturation current of 4.2 A.
The DC resistance (DCR) for the SRR1806-470M is 110 mΩ.
The operating temperature range for this inductor is -40°C to +125°C.
The SRR1806-470M is a surface mount inductor in a nonstandard package.
