| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,600 pcs
|
7600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| SVHC Present | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Rise | |
| Terminal | |
| Tolerance | |
| Type | |
| Width | |
| Wire |

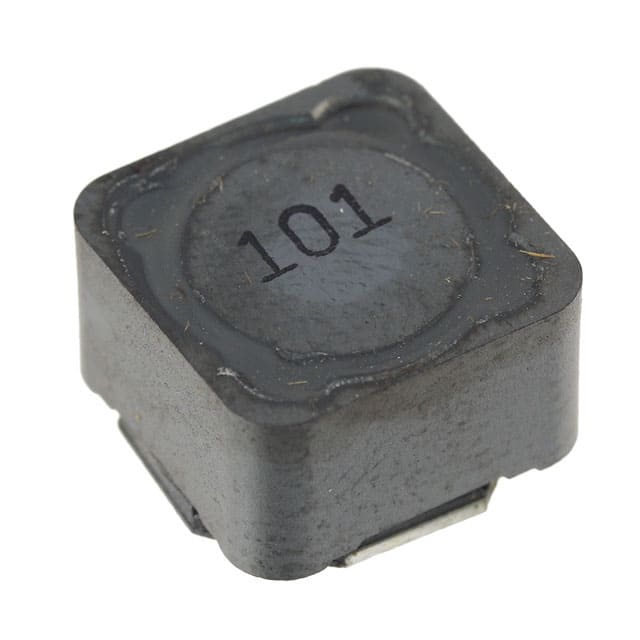

The Bourns SRR1280-3R3Y is a shielded surface mount (SMD) power inductor from the SRR1280 series. It offers a nominal inductance of 3.3µH with a tolerance of ±30% and a maximum DC resistance of 12mΩ. This inductor is rated for a current of 8.8A and operates within a temperature range of -40°C to +125°C.
Constructed with a ferrite core and wirewound type, this inductor is suitable for applications requiring input/output of DC/DC converters and power supplies for portable communication equipment, camcorders, and LCD televisions. Its dimensions are 12.50mm in length and width, and 8.00mm in height, making it a compact solution for various electronic designs. The component is supplied on a reel with 400 pieces per reel.
Key electrical characteristics include a Q factor of 20 at 7.96MHz and a self-resonant frequency of 40MHz. The operating temperature range is -40°C to +125°C, with a maximum temperature rise of 40°C at rated RMS current. The inductance drop is typically 25% at saturation current.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.3 µH measured at 100 kHz/1 V.
8.8 A maximum.
12 mΩ maximum.
40 MHz typical.
Nonstandard surface mount package, 12.50mm x 12.50mm x 8.00mm.
Yes, it is shielded.
-40°C to 125°C.
