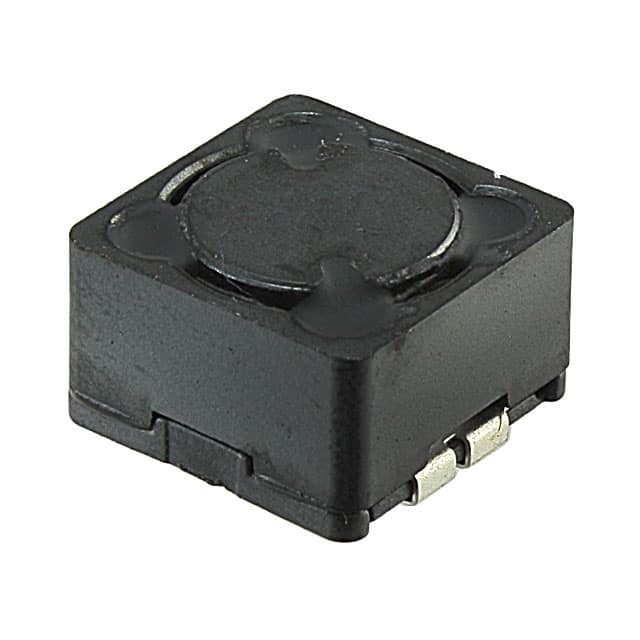

SRR1208-150ML The Bourns SRR1208-150ML is a shielded, wirewound inductor with a 15 µH inductance and a current rating of 4A. It features a surface mount package and operates over a wide temperature range.
Mfr Part #:

SRR1208-150ML

Available from 4 distributors
Mfr Name: Bourns
Bourns
The Bourns SRR1208-150ML is a shielded, wirewound inductor with a 15 µH inductance and a current rating of 4A. It features a surface mount package and operates over a wide temperature range.
✓ Total Stock: 39,140 pcs
$ Price Range: $0.18

SRR1208-150ML Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SRR1208-150ML Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Current Rating
Current Rating (Amps)
DC Resistance (DCR)
Frequency
Height
Inductance
Length
Material
Mounting Type
Operating Temperature
Q @ Freq
Shielding
Storage Temperature
Temperature Rise
Tolerance
Type
Width
View Similar Products (0)

SRR1208-150ML Description

Short technical summary and product information.

The Bourns SRR1208-150ML is a shielded, wirewound inductor from the SRR1208 Series, designed for high power applications. It offers an inductance value of 15 µH with a tolerance of ±20% and a DC resistance of 36mΩ maximum.



This inductor has a rated current of 4A and a typical saturation current of 5.6A. It is constructed with a ferrite core and features a shielded design. The operating temperature range is -40°C to +125°C, with a maximum temperature rise of 40°C at the rated Irms.



Designed for surface mounting, the SRR1208-150ML has a compact size with dimensions of 12.70mm x 12.70mm x 8.50mm. Its applications include input/output of DC/DC converters and power supplies for portable communication equipment, camcorders, and LCD TVs.

SRR1208-150ML Quick Information

Product Type: Shielded High Power Inductor
Series: SRR1208 Series
Canonical Name: Bourns SRR1208 Series Shielded High Power Inductor, 15 µH, ±20%
Subcategory: Fixed Inductor

SRR1208-150ML Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SRR1208-150ML Estimated Pricing

Qty Low High
1+ $0.18 $0.18

Estimated market price range - modelled values for guidance only, not live distributor offers.

SRR1208-150ML Features

  • Shielded wirewound inductor for power applications.
  • 15 µH inductance with ±20% tolerance.
  • Rated for 4A continuous current.
  • Low 36mΩ maximum DC resistance.
  • Compact 12.70mm x 12.70mm x 8.50mm SMD package.

SRR1208-150ML Applications

  • Power supply filtering and DC-DC converters.
  • EMI suppression in automotive electronics.
  • Energy storage in buck/boost regulators.
  • Suitable for high current applications.

SRR1208-150ML FAQs

7 frequently asked questions generated from this part’s specifications.
What is the inductance value of the SRR1208-150ML?

15 µH at 1 KHz.

What is the rated current of this inductor?

4 A nominal, with a saturation current of 5.6 A typical.

What is the DC resistance?

36 mΩ maximum.

What is the self-resonant frequency?

11 MHz minimum.

What is the package size and mounting type?

Surface mount, 12.70mm x 12.70mm x 8.50mm, Nonstandard package.

What is the operating temperature range?

-40°C to +125°C.

Is the inductor shielded?

Yes, shielded.
