| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Resistance to Soldering Heat | |
| SVHC Present | |
| Shielding | |
| Storage Temperature | |
| Tolerance | |
| Type | |
| Width |

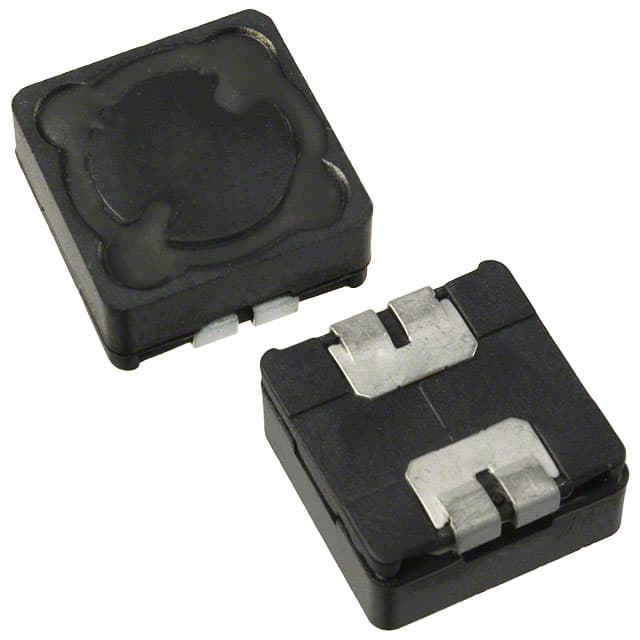

The Bourns SRR1206-220ML is a shielded, wirewound, drum core fixed inductor designed for surface mounting. It offers an inductance of 22 µH with a tolerance of ±20% and a Q factor of 21 at 2.52 MHz. The inductor has a maximum DC resistance of 62 mΩ and a rated current of 2.3 A, with a saturation current of 3.8 A.
Operating within a temperature range of -40°C to 125°C, this inductor is suitable for various power supply applications, including input/output of DC/DC converters and power supplies for portable communication equipment, camcorders, and LCD TVs. Its dimensions are 12.70mm x 12.70mm with a height of 6.50mm, making it a compact component for PCB integration. The component is supplied on reels with 600 pieces per reel.
This series is available in the E12 series and features a unit height of 6.5 mm. The construction utilizes a ferrite core, enameled copper wire, and LCP E4008 base with Cu/Ni/Sn terminals.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 22 µH.
The current rating is 2.3 A.
The maximum DC resistance is 62 mΩ.
The operating temperature range is -40°C to 125°C.
It uses a surface mount package.
There are 600 pieces per reel.
