| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,200 pcs
|
1200 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Resistance to Soldering Heat | |
| Self Resonant Frequency | |
| Shielding | |
| Storage Temperature | |
| Tolerance | |
| Type | |
| Width |

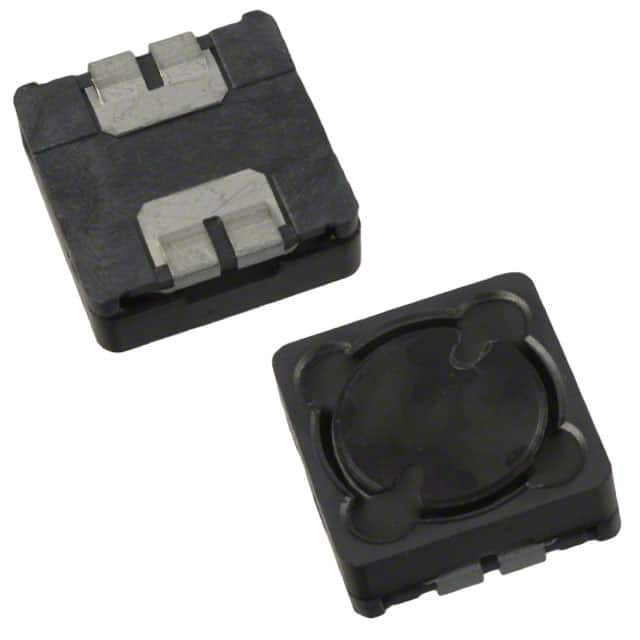

The Bourns SRR1205-151KL is a shielded high power inductor from the SRR1205 series. It features a drum core and wirewound construction, providing a nominal inductance of 150 µH with a tolerance of ±10% at 1 KHz. The inductor has a DC resistance (DCR) of 580 mΩ maximum and a rated current of 800 mA, with a saturation current of 1.5 A.
Designed for operation within a temperature range of -40°C to 125°C, this inductor is suitable for demanding applications. Its shielded design helps minimize electromagnetic interference. The component is surface mountable and comes in a nonstandard package, with 600 pieces per reel.
Key electrical characteristics include a Q factor of 10 at 796 kHz and a self-resonant frequency of 0.796 MHz minimum. The physical dimensions are 12.70mm in length and width, and 5.50mm in height, making it a compact solution for power supply circuits and DC/DC converters.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.15 | $0.15 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
150 µH measured at 1 kHz.
800 mA (temperature rise limited).
580 mΩ maximum.
0.796 MHz minimum.
Surface mount, nonstandard package.
-40°C to +125°C.
Yes, shielded.
