| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | 1319 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Lead Style | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Reflow Soldering | |
| Resistance to Soldering Heat | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Test Voltage | |
| Tolerance | |
| Type | |
| Width |

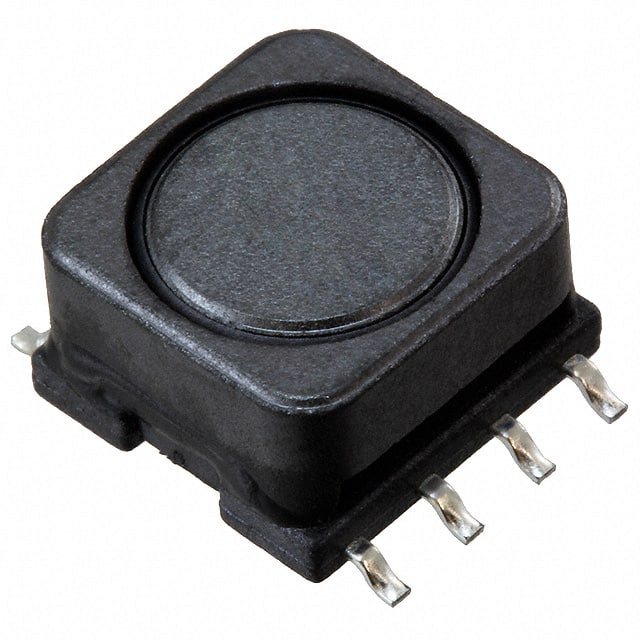

This Bourns SRR0906 Series inductor is a shielded, drum core, wirewound type designed for power applications. It offers an inductance of 22 µH with a tolerance of ±20% and a DC resistance of 130mΩ maximum.
The component has a rated current of 1.4A (RMS) and a saturation current of 1.9A (typical). It operates within a temperature range of -40°C to 125°C. The inductor is housed in an 8-SMD, Gull Wing package, suitable for surface mounting.
Key electrical specifications include a Q factor of 35 at 2.52MHz and a self-resonant frequency of 19MHz minimum. The material is ferrite, contributing to its shielding capabilities. This inductor is compliant with RoHS3 standards and is lead-free.
Applications include input/output of DC/DC converters and power supplies for portable communication equipment, camcorders, and LCD TVs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 22 µH.
The tolerance is ±20%.
The maximum DC resistance is 130 mΩ.
The RMS current rating is 1.4 A.
The operating temperature range is -40°C to 125°C.
It is in an 8-SMD, Gull Wing package.
Yes, it is a shielded inductor.
