| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Self-Resonant Frequency (SRF) | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

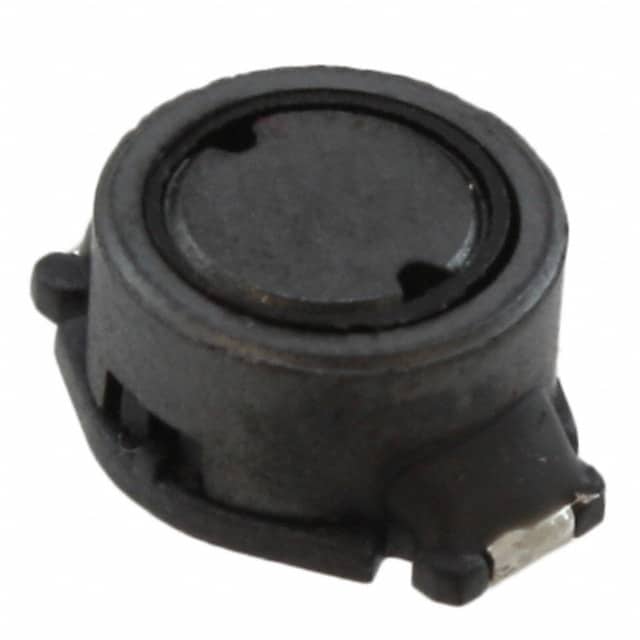

The Bourns SRR0805-2R2M is a shielded power inductor from the SRR0805 Series, designed for applications requiring efficient power conversion. It features a low profile of 4.7mm, making it suitable for space-constrained designs.
Key electrical specifications include an inductance of 2.2 µH with a tolerance of ±20%, a maximum DC resistance of 40mΩ, and a rated current of 2.5A. The inductor is shielded, which helps to minimize electromagnetic interference (EMI).
This component operates within a temperature range of -40°C to 125°C and is constructed with a ferrite core. It is available in a surface mount package, with dimensions of 10.5mm in length and 8.00mm in width.
Applications for this inductor include input/output stages of DC/DC converters and power supplies for portable communication equipment, camcorders, and LCD TVs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.2 µH at 1 KHz.
2.5 A RMS maximum.
0.04 Ω maximum.
75 MHz minimum.
Surface mount, 10.5mm x 8.0mm x 4.7mm.
18 at 7.96 MHz.
4.9 A typical.
