| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,785 pcs
|
2785 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,785 pcs
|
2785 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Factory Pack Quantity | |
| Frequency | |
| Height | |
| High Current | |
| Inductance | |
| Length | |
| Low unit height | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Q Factor | |
| SVHC Present | |
| Shielding | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width |

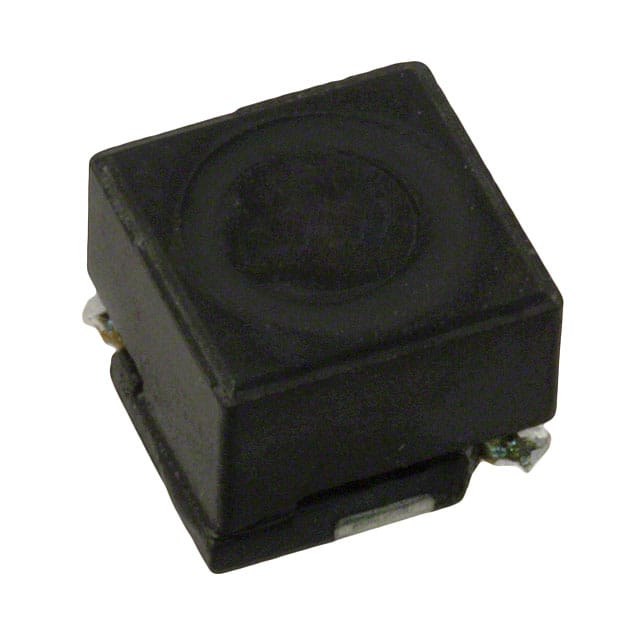

The Bourns SRR0604-101KL is a shielded power inductor from the SRR0604 series. It offers an inductance value of 100 µH with a tolerance of ±10%. This component is designed for high current applications and features a low unit height of 4.8 mm.
With a DC resistance (DCR) of 650mOhm maximum and a rated current of 400mA, it is suitable for various power supply applications. The operating temperature range is -40°C to 125°C. The inductor is constructed with a ferrite core and is shielded.
This inductor is designed for surface mounting and comes in a 0604 package. Its dimensions are 6.50mm in length and 6.50mm in width, with a height of 4.80mm. The SRR0604-101KL is RoHS3 compliant, REACH unaffected, and has an MSL of 1.
Applications for this inductor include input/output of DC/DC converters and power supplies for portable communication equipment, camcorders, and LCD TVs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 100 µH.
The rated current is 400 mA.
The maximum DC resistance is 650 mOhm.
The self-resonant frequency is 13 MHz.
It is in a 0604 package.
The dimensions are 6.50mm in length, 6.50mm in width, and 4.80mm in height.
Yes, it is RoHS3 compliant.
