| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,013 pcs
|
1013 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Lead Style | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| SVHC Present | |
| Self Resonant Frequency | |
| Shielding | |
| Storage Temperature | |
| Tolerance | |
| Type | |
| Width |

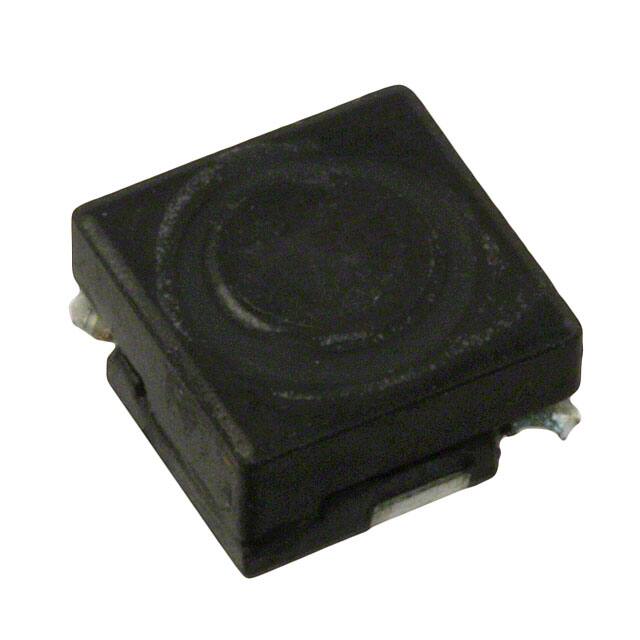

The Bourns SRR0603-102KL is a shielded power inductor from the SRR0603 series. It offers an inductance value of 1 mH with a tolerance of ±10% and a rated current of 100mA. This wirewound, drum core inductor is designed for surface mounting and features a low profile of 3.3mm.
With an operating temperature range of -40°C to +125°C, the SRR0603-102KL is suitable for various applications including input/output of DC/DC converters and power supplies for portable communication equipment, camcorders, and LCD TVs. Its shielded construction helps minimize electromagnetic interference.
The inductor has a maximum DC resistance of 1.50 Ω and a Q factor of 20 at 252kHz. It is compliant with RoHS3 directives and has a Moisture Sensitivity Level (MSL) of 1.
Key electrical specifications include a self-resonant frequency of 0.796 MHz and a saturation current rating of 0.44A. The component measures 6.50mm in length and width, making it suitable for compact designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1 mH at 1 kHz.
The RMS current rating is 0.30 A maximum, and the saturation current is typically 0.44 A.
The maximum DC resistance is 1.50 Ohm.
The minimum self-resonant frequency is 0.796 MHz.
Surface mount, nonstandard corner terminals package. Dimensions: 6.50 mm x 6.50 mm x 3.30 mm.
The typical Q factor is 20 at 252 kHz.
-40°C to +125°C.
