| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14,000 pcs
|
14000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Ratings | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Terminal Type | |
| Tolerance | |
| Type | |
| Width |

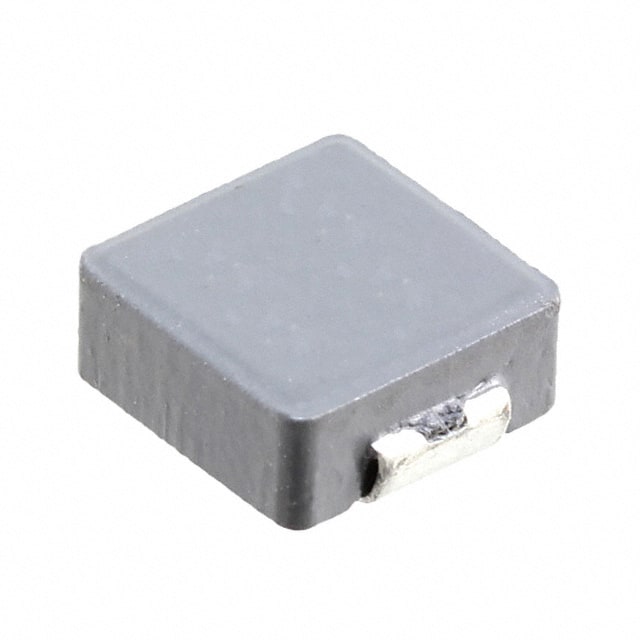

The Bourns SRP7028A-1R5M is a shielded power inductor from the SRP7028A series, designed for demanding applications. It offers a stable inductance of 1.5 µH with a tolerance of ±20% and a high current rating of 9A (Irms) and 18A (Isat).
This inductor utilizes a carbonyl powder core and wirewound construction, providing a low DC resistance (DCR) of 15mΩ Max. It is shielded for reduced electromagnetic interference (EMI) and operates reliably within a temperature range of -40°C to +150°C.
Designed for surface mounting, the SRP7028A-1R5M comes in a nonstandard package with dimensions of 7.30mm x 6.60mm x 3.00mm. It meets AEC-Q200 automotive qualification standards, making it suitable for use in harsh environments.
Key electrical specifications include a Q factor of 20 Min @ 100kHz and a self-resonant frequency of 38 MHz Typ. The component is RoHS3 compliant and Halogen Free.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.5µH ±20% at 100 KHz / 1 V.
9A (Irms) and 18A (Isat).
15mΩ maximum.
38 MHz typical.
-55°C to +150°C.
Surface mount, nonstandard package, tape and reel.
Yes, shielded.
