| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
21,000 pcs
|
21000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,205 pcs
|
2205 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,205 pcs
|
2205 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
334 pcs
|
334 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Core Material | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Industrial Grade | |
| Length | |
| Material | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Ratings | |
| Self Resonant Frequency | |
| Shielding | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

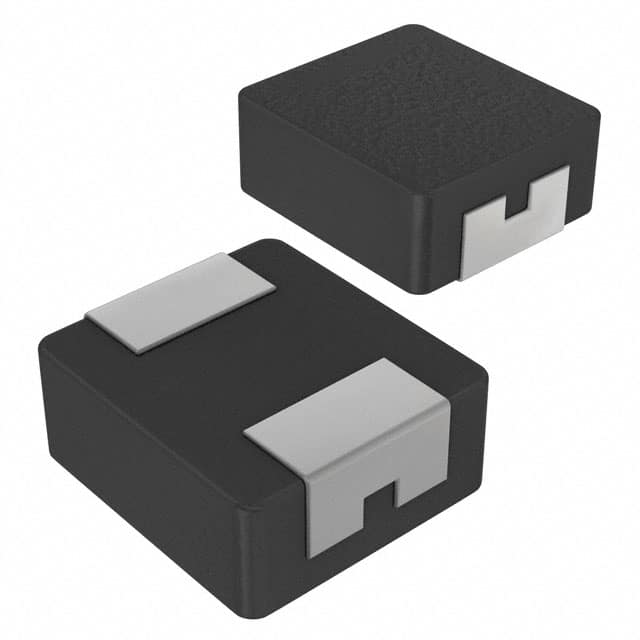

The Bourns SRP4020TA-100M is a shielded power inductor from the SRP4020TA series, designed for reliable performance in various electronic applications. This component offers an inductance of 10 µH with a tolerance of ±20% and a rated current of 1.8A. It is constructed with a carbonyl powder core and features a shielded construction for reduced electromagnetic interference.
The inductor has a low DC resistance of 243mOhm maximum, ensuring efficient operation. It operates within a temperature range of -40°C to 150°C and is AEC-Q200 compliant, making it suitable for demanding environments. The compact 2-SMD package measures 4.45mm in length, 4.06mm in width, and 2.00mm in height, ideal for surface mounting.
This inductor is RoHS3 compliant and halogen-free, meeting modern environmental standards. Its high saturation current of 2.3A and a Q factor of 10 minimum at 100kHz further enhance its suitability for power applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 10 µH at 100 KHz / 1 V.
The rated current is 1.8 A, defined at the point where inductance drops 20%.
The maximum DC resistance is 243 mOhm.
The self-resonant frequency is typically 19 MHz.
The inductor is in a 2-SMD package, surface mount, and is supplied in tape and reel with 3000 pieces per reel.
The saturation current is 2.3 A.
The operating temperature range is -40°C to 150°C.
