| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,000 pcs
|
16000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Rated Current | |
| Ratings | |
| Shielding | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

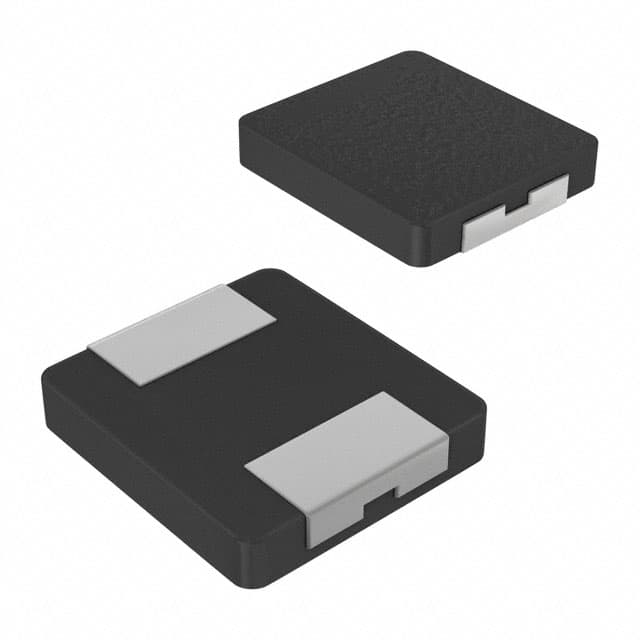

The Bourns SRP4012TA-1R0M is a shielded power inductor from the SRP4012TA series. This component offers an inductance of 1µH with a tolerance of ±20% and a Q factor of 10 at 100kHz.
Key electrical specifications include a maximum DC resistance (DCR) of 47mΩ and a current rating of 4A. The saturation current is rated at 6A, with the rated current (Irms) at 4A, specified under conditions of a 40°C temperature rise. The inductor operates within a temperature range of -40°C to 150°C.
Constructed with a carbonyl powder core and wirewound technology, this inductor is shielded to minimize electromagnetic interference. It is designed for surface mounting and comes in a 2-SMD package. The component is AEC-Q200 qualified, making it suitable for demanding applications. It is supplied on a 13-inch reel with a standard package quantity of 4000 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.21 | $0.21 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 1µH.
The current rating is 4A.
The maximum DC resistance is 47mΩ.
The operating temperature range is -40°C to 150°C.
Yes, the SRP4012TA-1R0M is AEC-Q200 qualified.
It uses a carbonyl powder core.
It is supplied on a 13-inch reel with 4000 pieces per reel.
