| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
2,150 pcs
|
2150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Resistance | |
| Tape & Reel | |
| Thickness (Max) | |
| Time to Trip | |
| Type | |
| Voltage | |
| Width |

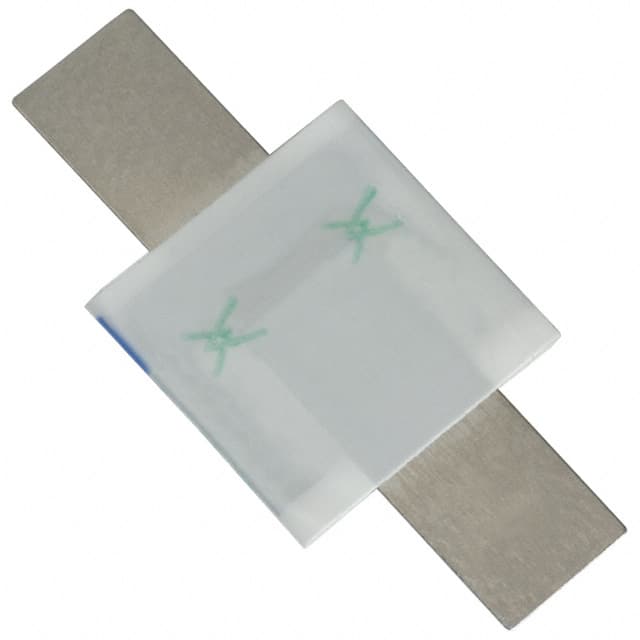

The SRP200F is a polymeric PTC resettable fuse from Littelfuse Inc., designed for overcurrent protection in electronic circuits. It is rated for a maximum voltage of 30V and a hold current of 2A, with a typical initial resistance of 100 mΩ. The time to trip is 4 seconds under specified test conditions.
This resettable fuse utilizes polymeric PTC technology, which automatically resets after the fault is cleared. It operates reliably across a temperature range of -40°C to 85°C, making it suitable for various environments.
The SRP200F comes in a strap package, measuring 22.35mm in length, 10.60mm in width, and 1.10mm in thickness. The mounting type is user defined, providing flexibility in design integration.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.77 | $0.77 |
| 10+ | $0.71 | $0.71 |
| 50+ | $0.59 | $0.59 |
| 100+ | $0.54 | $0.54 |
| 250+ | $0.49 | $0.49 |
| 500+ | $0.45 | $0.45 |
| 1,000+ | $0.41 | $0.41 |
| 5,000+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2A.
30V.
4s.
Strap.
100 mΩ typical.
-40°C to 85°C.
Length 22.35mm, width 10.60mm, thickness 1.10mm.
