| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14,000 pcs
|
14000 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Length | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Resistance | |
| SVHC Present | |
| Thickness (Max) | |
| Time to Trip | |
| Type | |
| Voltage | |
| Width |

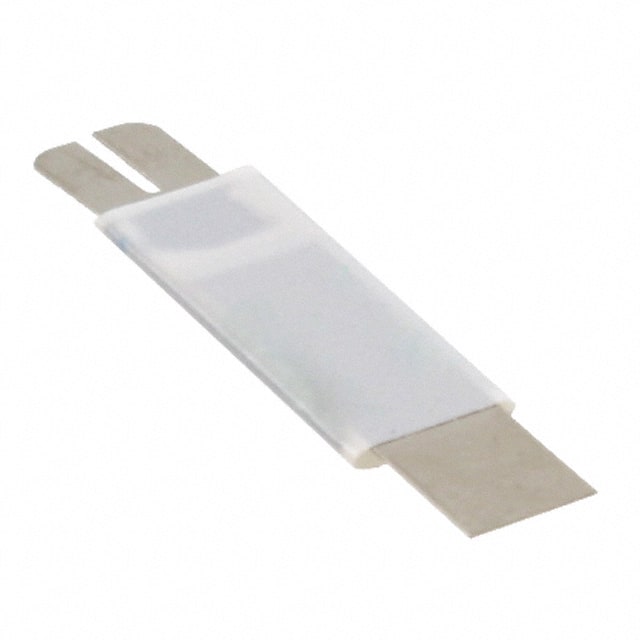

The Littelfuse Inc. SRP175SF is a PolySwitch resettable Positive Temperature Coefficient (PPTC) fuse. It is designed to protect circuits from overcurrent conditions and is suitable for automotive applications, having been qualified to AEC-Q200.
Key electrical specifications include a typical hold current of 1.75A at 25°C, a maximum trip current of 3.9A, and a maximum voltage rating of 15VDC. The device has a maximum resistance of 120mΩ and a typical activation temperature of 125°C. The operating temperature range is -40°C to 85°C.
Mechanically, the SRP175SF has a length of 22.00mm and a width of 5.05mm, with a maximum thickness of 1.00mm. It is supplied in a strap package and is designed for user-defined mounting.
This resettable fuse is RoHS compliant and Halogen free, making it suitable for various electronic assemblies. Applications include rechargeable batteries for mobile devices, e-call systems, vacuum cleaners, power tools, and portable medical devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical hold current for the SRP175SF is 1.75A at 25°C.
The maximum voltage rating for the SRP175SF is 15VDC.
The typical time to trip for the SRP175SF at 1.75A is 5 seconds.
The maximum resistance of the SRP175SF is 120mΩ.
The operating temperature range for the SRP175SF is -40°C to 85°C.
The SRP175SF is available in a strap package.
