| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
395 pcs
|
395 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Rated Current | |
| Resistance to Soldering Heat | |
| SVHC Present | |
| Shielding | |
| Tape & Reel | |
| Temperature Rise | |
| Test Voltage | |
| Tolerance | |
| Type | |
| Width |

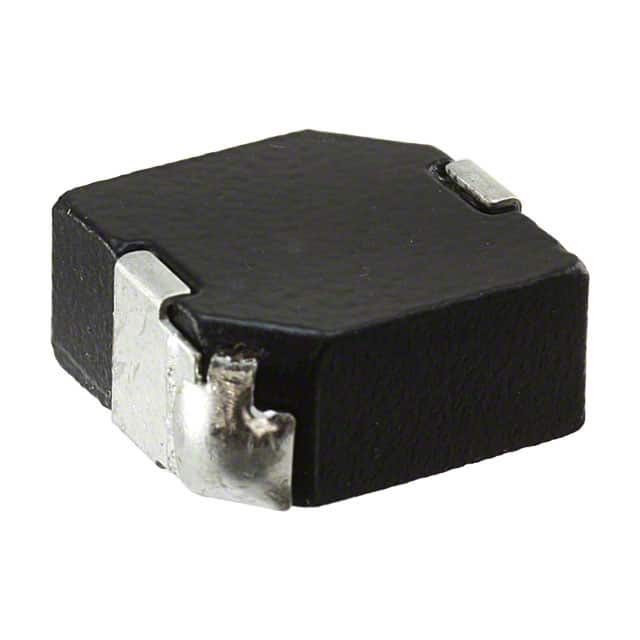

The Bourns SRP1270-1R0M is a shielded power inductor from the SRP1270 series, designed for demanding applications requiring high current handling and reliability. This wirewound, drum core inductor offers an inductance value of 1 µH with a tight tolerance of ±20%.
Key electrical characteristics include a maximum DC resistance (DCR) of 2.1 mΩ and a rated current of 50A, with the inductance dropping 20% at Isat. It operates effectively within a temperature range of -55°C to 125°C, with a typical self-resonant frequency of 45 MHz.
Constructed with an iron core and enameled copper wire, the inductor measures 13.70mm in length and width, with a maximum height of 7.00mm. Its shielded construction minimizes electromagnetic interference, making it suitable for various electronic circuits. The component is designed for surface mounting and comes packaged on a reel.
This inductor is RoHS3 compliant and meets Moisture Sensitivity Level 1 requirements, ensuring suitability for automated assembly processes. Its robust design and specifications make it a reliable choice for power supply circuits, DC-DC converters, and other power management applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 1µH with a tolerance of ±20%.
The maximum current rating is 50A, based on a 20% inductance drop at saturation (Isat).
The maximum DC resistance (DCR) is 2.1mΩ.
The typical self-resonant frequency is 45MHz.
The operating temperature range is -55°C to 125°C.
The dimensions are 13.70mm x 13.70mm (length and width) with a maximum height of 7.00mm.
Yes, the inductor is shielded.
