| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,000 pcs
|
13000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,229 pcs
|
2229 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request | |
|
437 pcs
|
437 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | 1624 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Ratings | |
| Self Resonant Frequency | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type | |
| Width |

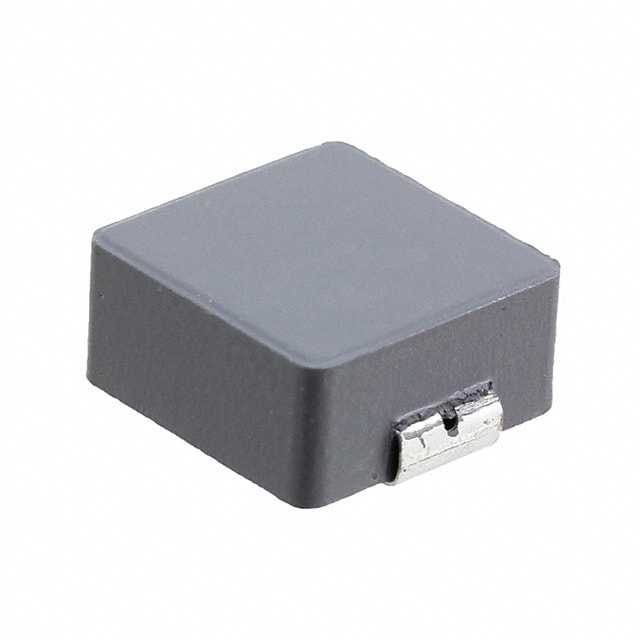

The Bourns SRP1265A-2R2M is a shielded power inductor from the SRP1265A series, offering a reliable solution for power management applications. This component features a nominal inductance of 2.2 µH with a tolerance of ±20%, tested at 100 KHz and 1 V. It boasts a high current rating of 22A for RMS current and up to 40A for saturation current, ensuring robust performance under load.
The inductor has a low DC resistance (DCR) of 4.2mOhm maximum, minimizing power loss and heat generation. Its construction utilizes a carbonyl powder core and wirewound technology, providing excellent magnetic properties. The operating temperature range is -40°C to 150°C, making it suitable for demanding environments. This inductor is AEC-Q200 compliant, indicating its suitability for automotive and harsh condition applications.
Designed for surface mounting, the SRP1265A-2R2M has dimensions of 13.50mm in length, 12.50mm in width, and 6.40mm in height. Its shielded construction helps to minimize electromagnetic interference (EMI), making it an ideal choice for compact and noise-sensitive designs. The component is also RoHS3 compliant and rated MSL 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 2.2 µH.
The RMS current rating is 22A, and the saturation current rating is 40A.
The maximum DC resistance is 4.2mOhm.
The operating temperature range is -40°C to 150°C.
Yes, the SRP1265A-2R2M is AEC-Q200 compliant.
It is a surface mount, nonstandard package.
