| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,842 pcs
|
6842 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Supplier Device Package | |
| Tolerance | |
| Type | |
| Width |

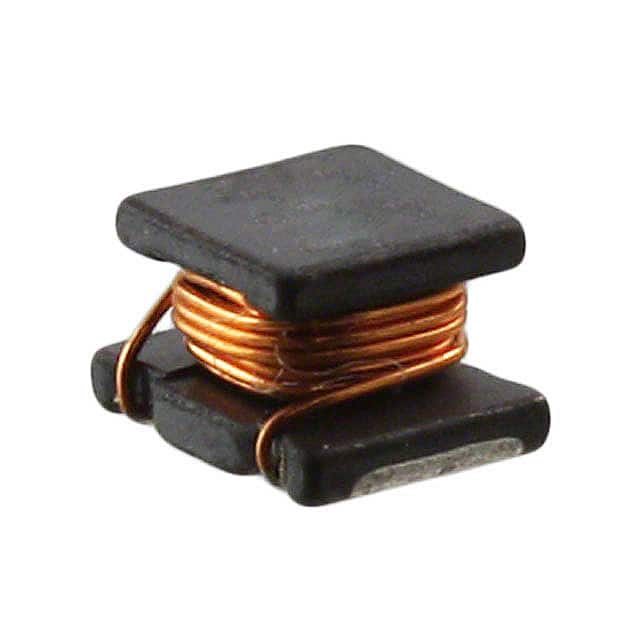

This Bourns SRN6028-680M is a fixed inductor designed for surface mount applications. It offers an inductance value of 68 µH with a tolerance of ±20% and a maximum DC resistance of 510mOhm.
The inductor has a current rating of 770mA and can handle up to 800mA. It operates within a temperature range of -40°C to 125°C and has a Q factor of 11 at 2.52MHz. The component is constructed with a ferrite core and is semi-shielded.
Its dimensions are 6.00mm in length, 6.00mm in width, and 2.80mm in height. The package type is 2424 (6060 Metric) with a supplier device package code of 6028. This inductor is suitable for various electronic circuits requiring stable inductance.
The RoHS status is compliant, and the Moisture Sensitivity Level is 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the SRN6028-680M is 68 µH.
The current rating for the SRN6028-680M is 770 mA.
The maximum DC resistance (DCR) for the SRN6028-680M is 510mOhm.
The operating temperature range is -40°C to 125°C.
The SRN6028-680M is in a 2424 (6060 Metric) package.
