| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Lead Style | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Self-Resonant Frequency (SRF) | |
| Shielding | |
| Test Frequency | |
| Tolerance | |
| Type | |
| Width |

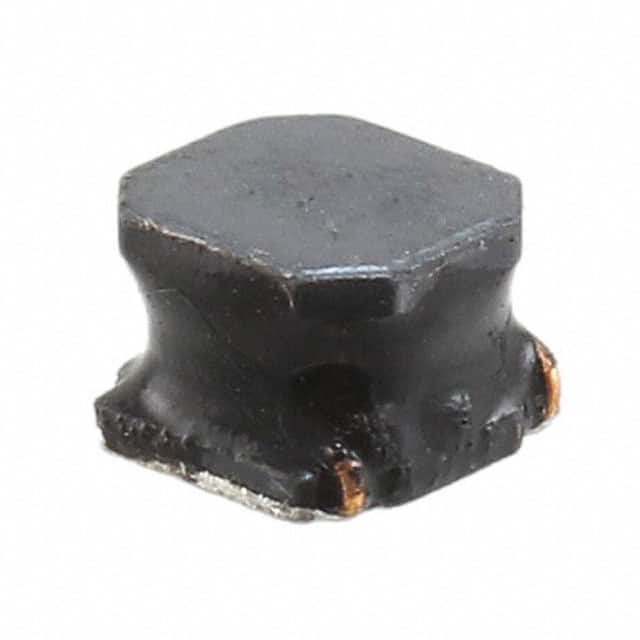

The Bourns SRN5040-100M is a semi-shielded power inductor from the SRN5040 series. It offers a nominal inductance of 10µH with a tolerance of ±20% and a rated current of 2.1A. The inductor features a low DC resistance of 68mΩ maximum and a typical Q factor of 17 at 7.96MHz.
Constructed with a ferrite core and wirewound type, this inductor is suitable for surface mount applications. It operates within a temperature range of -40°C to 125°C. The component is packaged in a standard reel quantity of 1000 pieces.
This inductor is designed for applications such as DC/DC converters, notebook computers, digital video cameras, HDDs, cellphones, and televisions/LCD displays. Its semi-shielded construction helps minimize electromagnetic interference.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.31 | $0.31 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 µH at 100 KHz / 1 V.
2.1 A typical (also 2.3 A noted).
68 mΩ maximum.
17 MHz typical.
5.00 mm x 5.00 mm x 4.00 mm SMD nonstandard package.
-40°C to +125°C.
Yes, it is halogen free.
