| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,704 pcs
|
3704 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
49 pcs
|
49 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coating | |
| Core Material | |
| Current | |
| Current Rating (Amps) | |
| Current Rating (Nominal @ Inductance drops 30% at Isat) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Inductance Tolerance (Nominal @ 100 kHz / 1 V) | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Q Factor (Typical @ 100 kHz / 1 V) | |
| Resistance to Solder Heat | |
| SVHC Present | |
| Saturation Current | |
| Self Resonant Frequency (Typical) | |
| Shielding | |
| Storage Temperature | |
| Tape & Reel | |
| Temperature Rise | |
| Terminal Finish | |
| Tolerance | |
| Type | |
| Width | |
| Wire Material | |
| dcr (Maximum) |

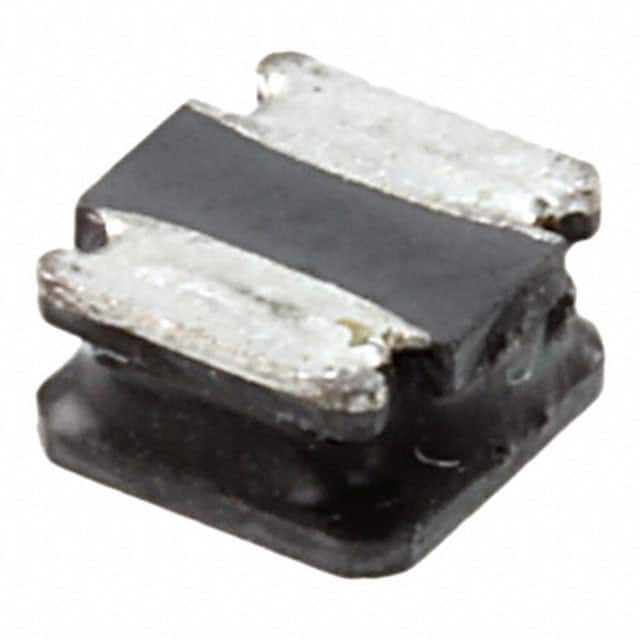

The Bourns SRN4026-100M is a semi-shielded power inductor from the SRN4026 series. It offers a nominal inductance of 10µH with a tolerance of ±20% and a rated current of 970mA.
This wirewound, drum core inductor operates within a temperature range of -40°C to +125°C. Its key electrical specifications include a Q factor of 11 at 7.96MHz and a maximum DC resistance of 102mΩ. The component is constructed with a ferrite core and features a magnetic epoxy resin coating.
Designed for surface mounting, the SRN4026-100M has dimensions of 4.00mm x 4.00mm with a height of 2.50mm. It is packaged in a standard reel of 3000 pieces.
This inductor is suitable for applications such as DC/DC converters, notebook computers, digital video cameras, HDDs, cellphones, and televisions.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 µH at 100 KHz / 1 V.
970 mA (based on 30% inductance drop at saturation).
102 mOhm maximum.
26 MHz typical.
Nonstandard surface mount package, supplied in tape and reel (3000 pcs per 13-inch reel).
-40°C to +125°C.
Yes, it is halogen free.
