| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coating | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Standard Package Quantity | |
| Tape & Reel | |
| Terminal Finish | |
| Termination Style | |
| Tolerance | |
| Type | |
| Width | |
| Wire |

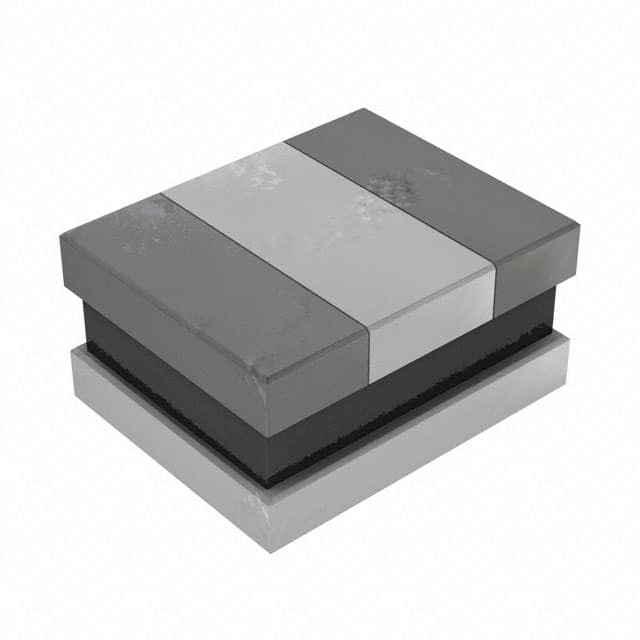

The Bourns SRN2012-1R0M is a semi-shielded power inductor from the SRN2012 series. It offers an inductance of 1 µH with ±20% tolerance, a rated current of 2.3 A, and a maximum DC resistance of 104 mOhm. The self-resonant frequency is 110 MHz minimum, and the Q factor is 10 at 1 MHz. The inductor uses a ferrite core with enameled copper wire and a magnetic epoxy resin coating, with tin terminal finish.
This component is designed for surface mount assembly in a compact nonstandard package measuring 2.00 mm x 1.60 mm with a seated height of 1.20 mm. It operates over a temperature range of -55°C to +125°C and is RoHS compliant and halogen free.
Typical applications include DC/DC converters, notebook computers, digital video cameras, HDDs, cellphones, and LCD televisions. The semi-shielded construction helps reduce electromagnetic interference in dense PCB layouts.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 1 µH at 1 MHz / 0.1 V.
The rated current (Irms) is 2.3 A, and the saturation current (Isat) is 2.5 A.
The maximum DC resistance is 104 mOhm.
The minimum self-resonant frequency is 110 MHz.
The package dimensions are 2.00 mm x 1.60 mm with a maximum height of 1.20 mm.
The operating temperature range is -55°C to +125°C.
Yes, it is RoHS3 compliant as stated in the datasheet.
