| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
26,466 pcs
|
26466 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | 22+ | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Halogen Free | |
| Height | |
| Inductance | |
| Lead Style | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Self-Resonant Frequency (SRF) | |
| Shielding | |
| Tolerance | |
| Type | |
| Width |

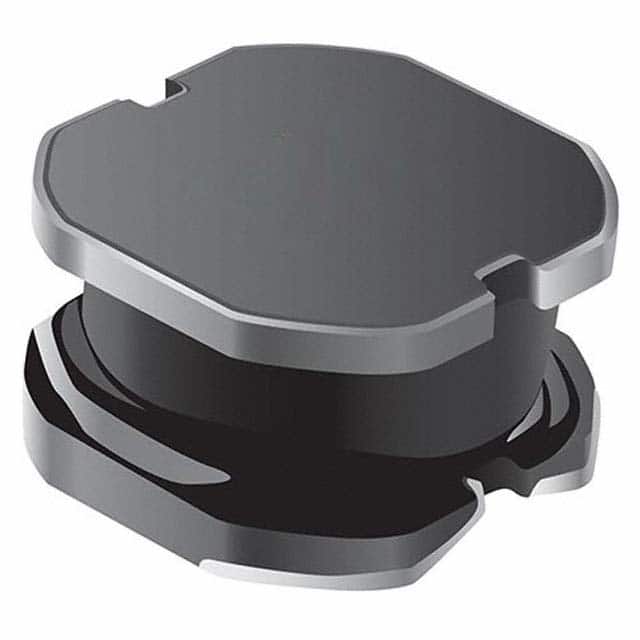

The Bourns SRN1060-330M is a semi-shielded power inductor from the SRN1060 series, designed for applications requiring high inductance and current handling capabilities. It offers an inductance value of 33 µH with a tolerance of ±20% and a rated current of 3.15A. The inductor has a low DC resistance (DCR) of 72mΩ maximum, contributing to efficient power conversion.
Constructed with a ferrite core and wirewound technology, this inductor is suitable for demanding environments, operating within a temperature range of -40°C to +125°C. Its semi-shielded construction helps minimize electromagnetic interference. The component is designed for surface mounting, making it compatible with modern PCB assembly processes.
Key electrical specifications include a Q factor of 16 at 2.52MHz and a saturation current (Isat) of 2.80A. The inductor also has a self-resonant frequency (SRF) of 16MHz. It is RoHS compliant and halogen-free, meeting environmental standards for electronic components.
Applications for the SRN1060-330M include DC/DC converters, notebook computers, digital video cameras, and televisions, where reliable power management is crucial.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the SRN1060-330M is 33 µH.
The rated current (Irms) for the SRN1060-330M is 3.15A, with a saturation current (Isat) of 2.80A.
The maximum DC resistance (DCR) for the SRN1060-330M is 72mΩ.
The operating temperature range for this inductor is -40°C to +125°C.
Yes, the SRN1060-330M is RoHS3 compliant.
Yes, the SRN1060-330M is halogen-free.
