SRM6828S32D02GE008V21I0 The SolidRun LTD SRM6828S32D02GE008V21I0 is a System on Module (SOM) featuring the ARMADA A388 dual-core processor. It offers 2GB/8GB RAM and multiple connectivity options.
Mfr Part #:

SRM6828S32D02GE008V21I0

Available from 2 distributors
Mfr Name: SolidRun LTD
SolidRun LTD
The SolidRun LTD SRM6828S32D02GE008V21I0 is a System on Module (SOM) featuring the ARMADA A388 dual-core processor. It offers 2GB/8GB RAM and multiple connectivity options.
✓ Total Stock: 240 pcs
$ Price Range: $0.99

SRM6828S32D02GE008V21I0 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
120 pcs
On Request
120 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
120 pcs
On Request
120 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SRM6828S32D02GE008V21I0 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Core Processor
Dimensions
Ethernet
Expansion Site
Interface
Memory Type
Number of Cores
Operating Temperature
RAM Capacity
SATA
SVHC Present
Speed
Storage Interface
USB
Voltage
Watchdog Timer
View Similar Products (0)

SRM6828S32D02GE008V21I0 Description

Short technical summary and product information.

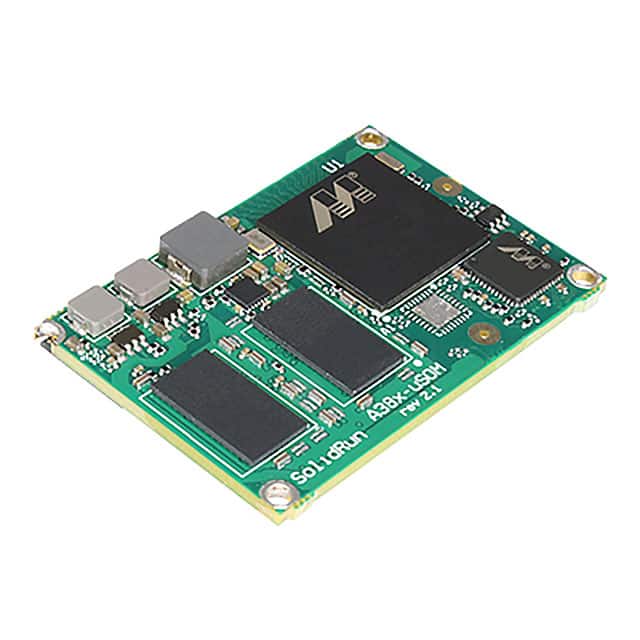

The SolidRun LTD SRM6828S32D02GE008V21I0 is a compact System on Module (SOM) designed for embedded edge computing applications, particularly optimized for IoT systems. It is built around the Marvell ARMADA A388 SoC, featuring a dual-core ARM Cortex-A9 processor capable of running at up to 1.3GHz in industrial temperature ranges.



This SOM supports up to 2GB of DDR3L RAM and includes 32MB of SPI Flash, with options for 8GB eMMC storage. Connectivity is robust, offering three 10/100/1000Mbps Ethernet MACs, three USB 2.0 ports, two USB 3.0 ports, and interfaces for SATA and PCIe expansion. It also supports SDIO, I2C, SPDIF, and TDM.



Designed for industrial environments, the SRM6828S32D02GE008V21I0 operates within an ambient temperature range of -40°C to 85°C. Its small form factor of 50mm x 35mm makes it suitable for space-constrained applications. The module utilizes Hirose DF40 connectors for its interface.



Software support includes U-Boot, Linux Kernel 3.x and 4.x, OpenWrt, and Yocto, providing a flexible platform for embedded system development. This SOM is an ideal building block for fast and efficient system development in networking, storage, and IoT applications.

SRM6828S32D02GE008V21I0 Quick Information

Product Type: System on Module (SOM)
Canonical Name: SolidRun LTD ARMADA A388 Dual Core Cortex-A9 System on Module
Subcategory: Computer On Module

SRM6828S32D02GE008V21I0 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SRM6828S32D02GE008V21I0 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

SRM6828S32D02GE008V21I0 Features

  • Dual-core ARM Cortex-A9 ARMADA A388 processor.
  • 1.3GHz processor speed for industrial applications.
  • 2GB/8GB DDR3L RAM with optional eMMC storage.
  • Multiple Ethernet, USB, SATA, and PCIe interfaces.
  • Wide industrial operating temperature range of -40°C to 85°C.

SRM6828S32D02GE008V21I0 Applications

  • Ideal for embedded edge computing.
  • Optimized for IoT system development.
  • Suitable for networking and storage applications.
  • Enables fast system development cycles.
  • Compact form factor for space-constrained designs.

SRM6828S32D02GE008V21I0 FAQs

7 frequently asked questions generated from this part’s specifications.
What processor is used in the SolidRun LTD SRM6828S32D02GE008V21I0 SOM?

The SolidRun LTD SRM6828S32D02GE008V21I0 SOM uses the Marvell ARMADA A388 dual-core Cortex-A9 processor.

What is the operating temperature range for this SOM?

This SOM has an operating temperature range of -40°C to 85°C.

How much RAM does the SRM6828S32D02GE008V21I0 module have?

The module has 2GB/8GB of RAM.

What are the dimensions of the SRM6828S32D02GE008V21I0 SOM?

The dimensions of the SOM are 50mm x 35mm.

Does this SOM support Gigabit Ethernet?

Yes, it features three 10/100/1000Mbps Ethernet ports.

What storage interfaces are available on this module?

Available storage interfaces include eMMC, SDIO, and SPI.

What operating systems are supported by this SOM?

Supported operating systems include U-Boot, Linux Kernel 3.x and 4.x, OpenWrt, and Yocto.
