| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19,500 pcs
|
19500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
368 pcs
|
368 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Material | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Halogen Free | |
| Height | |
| Height (Max) | |
| Impedance @ Frequency | |
| Inductance @ Frequency | |
| Insulation Resistance | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Tape & Reel | |
| Temperature Rise | |
| Voltage Rating | |
| Width | |
| Withstanding Voltage |

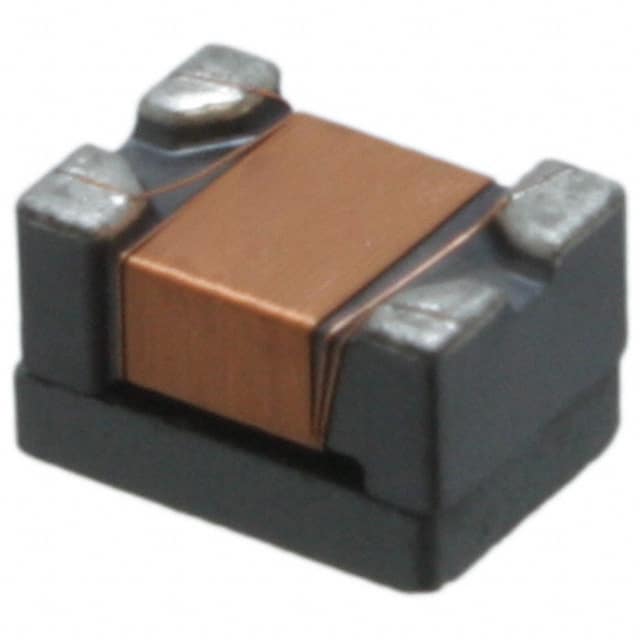

The Bourns SRF4532-510Y is a common mode chip inductor from the SRF4532 series, designed for effective EMI suppression in various electronic applications. This component is particularly suited for data and signal lines in telecom devices and consumer electronics.
Key electrical specifications include an inductance of 51 µH at 100 kHz, an impedance of 2 kΩ at 10 MHz, a maximum DC resistance of 3.5Ω, and a maximum current rating of 200mA. It operates at a rated voltage of 50VDC and has a wide operating temperature range of -40°C to +125°C.
This common mode choke is constructed with a ferrite core and enameled copper wire. It features a surface mount package with dimensions of 4.50mm x 3.20mm x 3.00mm. The component is supplied on a 7-inch reel with 500 pieces per reel, suitable for automated assembly processes.
The SRF4532-510Y is RoHS compliant and halogen-free, meeting modern environmental standards for electronic components.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.36 | $0.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance of the SRF4532-510Y is 51 µH at 100 kHz.
The maximum current rating for the SRF4532-510Y is 200mA.
The operating temperature range is -40°C to +125°C.
The SRF4532-510Y is available in a surface mount package.
Yes, the SRF4532-510Y is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
