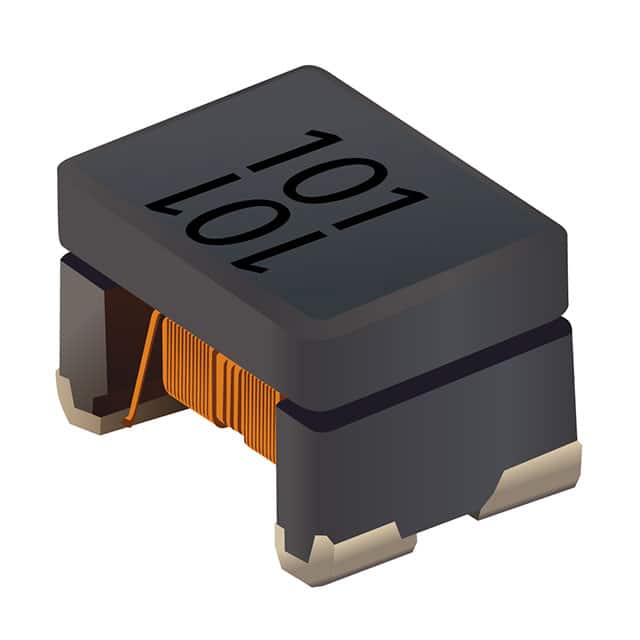

SRF3225TAC-510Y The Bourns SRF3225TAC-510Y is a common mode choke with 51 µH inductance and a 200mA current rating. It features a surface mount package and AEC-Q200 compliance.
Mfr Part #:

SRF3225TAC-510Y

Available from 1 distributors
Mfr Name: Bourns
Bourns
The Bourns SRF3225TAC-510Y is a common mode choke with 51 µH inductance and a 200mA current rating. It features a surface mount package and AEC-Q200 compliance.
✓ Total Stock: 90 pcs
$ Price Range: $0.37

SRF3225TAC-510Y Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Seba Components ✓
Non-Authorised Inventory information
90 pcs
On Request
90 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SRF3225TAC-510Y Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Capacitance
Core Material
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Halogen Free
Height
Height (Max)
Impedance @ Frequency
Inductance
Inductance @ Frequency
Insulation Resistance
Length
Mounting Type
Number of Lines
Operating Temperature
Ratings
Temperature Rise
Voltage
Voltage Rating
Width
View Similar Products (0)

SRF3225TAC-510Y Description

Short technical summary and product information.

The Bourns SRF3225TAC-510Y is a common mode chip inductor designed for noise suppression applications. It features a shielded construction for low radiation and a bifilar wound design.



Key electrical specifications include an inductance of 51 µH at 100 kHz with a tolerance of -30/+50%, a maximum DC resistance of 700mΩ, and a maximum current rating of 200mA. The common mode impedance is 2600 Ω at 10 MHz. It is rated for 80 VDC and has an insulation resistance of 10 MΩ minimum at 50 VDC.



This inductor operates within an extended temperature range of -55°C to +150°C. The core material is ferrite, and the wire is enameled copper with Sn terminal finish. It meets AEC-Q200 compliance standards.



The SRF3225TAC-510Y is supplied in a surface mount package measuring 3.20mm x 2.50mm with a maximum height of 2.50mm. It is packaged in 7-inch reels with 2000 pieces per reel.

SRF3225TAC-510Y Quick Information

Product Type: Common Mode Choke
Series: SRF3225TAC
Canonical Name: Bourns SRF3225TAC Series Common Mode Chip Inductor
Subcategory: Common Mode Choke

SRF3225TAC-510Y Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SRF3225TAC-510Y Estimated Pricing

Qty Low High
1+ $0.37 $0.37

Estimated market price range - modelled values for guidance only, not live distributor offers.

SRF3225TAC-510Y Features

  • Common mode choke with 51 µH inductance.
  • Rated for 200mA maximum current.
  • Operates at 80VDC.
  • Wide temperature range of -55°C to +150°C.
  • AEC-Q200 compliant for automotive applications.

SRF3225TAC-510Y Applications

  • Suppresses noise on high-speed digital communication lines.
  • Protects USB and HDMI interfaces from EMI interference.
  • Filters power supply rails in compact mobile devices.
  • Mitigates common mode noise in automotive sensor circuits.
  • Stabilizes signal integrity in industrial control modules.

SRF3225TAC-510Y FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the SRF3225TAC-510Y?

The inductance of the SRF3225TAC-510Y is 51 µH at 100 kHz.

What is the maximum current rating for this common mode choke?

The maximum current rating for the SRF3225TAC-510Y is 200mA.

What is the voltage rating of the SRF3225TAC-510Y?

The voltage rating is 80 VDC.

What is the operating temperature range?

The operating temperature range is -55°C to +150°C.

Is this component AEC-Q200 compliant?

Yes, the SRF3225TAC-510Y is AEC-Q200 compliant.

What type of package is the SRF3225TAC-510Y in?

The SRF3225TAC-510Y is a surface mount component in a Horizontal, 4 PC Pad package.
