| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20,000 pcs
|
20000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |||||||||
|
106 pcs
$0.20
|
106 pcs |
$0.20
|
1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Halogen Free | |
| Height | |
| Height (Max) | |
| Impedance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| SVHC Present | |
| Tape & Reel | |
| Voltage Rating | |
| Width |

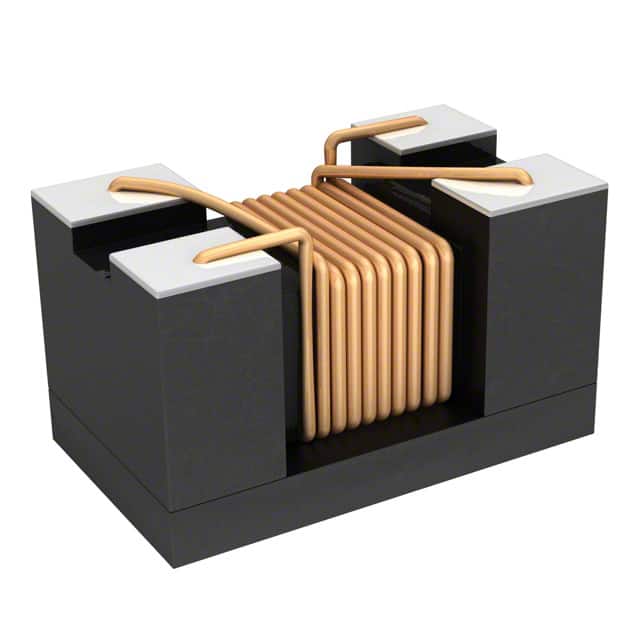

The Bourns SRF2012-121YA is a common mode chip inductor from the SRF2012A series. It offers a high impedance value of 120 Ohms at 100 MHz, making it suitable for noise suppression applications.
This component features a maximum current rating of 400mA and a maximum DC resistance (DCR) of 300mΩ. It operates within a temperature range of -40°C to 125°C and has a DC voltage rating of 50V.
The SRF2012-121YA is designed for surface mount applications and comes in a compact package with dimensions of 2.00mm x 1.20mm and a maximum height of 1.40mm. It is also RoHS compliant and halogen-free.
Key applications include noise suppression in personal computers and display panels.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The impedance of the SRF2012-121YA is 120 Ohms at 100 MHz.
The maximum current rating for the SRF2012-121YA is 400mA.
The maximum DC resistance (DCR) for the SRF2012-121YA is 300mΩ.
The operating temperature range for the SRF2012-121YA is -40°C to 125°C.
The voltage rating for the SRF2012-121YA is 50VDC.
The SRF2012-121YA is in a surface mount package.
