| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
249 pcs
|
249 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Material | |
| Contact Plating | |
| Contact Size | |
| Current Rating | |
| Durability | |
| Failure Rate | |
| Mounting Type | |
| Number of Contacts | |
| Termination Method | |
| Voltage Rating |

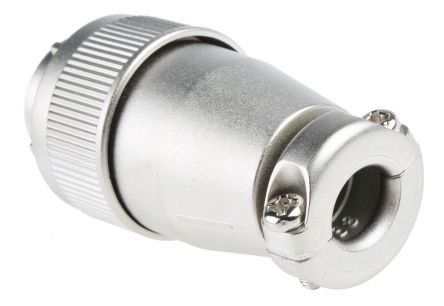

The JAE SRCN6A16-7P is a miniature circular connector assembly from the SRCN series, manufactured by Japan Aviation Electronics Industry Limited. This general-purpose connector features 7 male contacts made of silver-plated copper alloy, suitable for applications requiring reliable connections.
With a voltage rating of 250V AC/350V DC and a current rating of 10A per contact, this connector is designed for robust performance. It has a contact size of 16AWG and a termination method of clamp. The connector body is made from aluminum alloy with nickel plating, offering a lightweight yet solid construction.
Designed for ease of use, the SRCN6A16-7P has a straight body orientation and positive polarization with five keys and keyways. It is rated for an operating temperature range of -25°C to 85°C and offers a durability of 500 mating cycles. This cable mount connector is suitable for various applications including communication systems, telecommunication, and test equipment.
Key features include its miniature size, high reliability contact finish, and lightweight construction. The connector is RoHS3 compliant and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
7 positions.
10A.
250V AC and 350V DC.
Cable mount.
Clamp termination.
-25°C to 85°C.
500 mating cycles.
