Mfr Part #:

SRCN6A13-3P

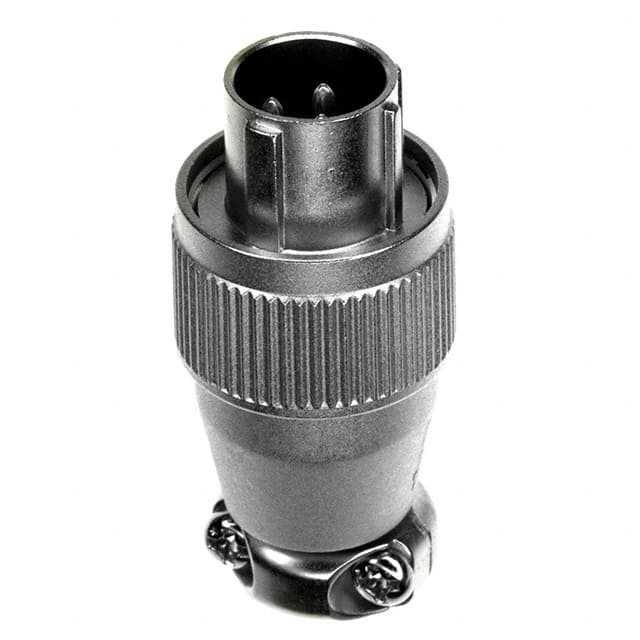

JAE Electronics SRCN6A13-3P is a 3-position circular connector plug with male pins, rated for 10A and 250VAC/350VDC. It features solder cup termination, threaded coupling, and a nickel-plated aluminum shell.

✓ Total Stock: 160 pcs

$ Price Range: $5.90 - $9.62

SRCN6A13-3P Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	160 pcs On Request	160 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SRCN6A13-3P Description

Short technical summary and product information.

This is a circular connector plug from JAE Electronics, part of the SRCN series. It has 3 male pins arranged in a normal orientation, with a shell size of 13-3. The connector is designed for free hanging (in-line) mounting and uses solder cup termination for wire attachment.

Electrical ratings include a current rating of 10A and voltage ratings of 250VAC and 350VDC. The operating temperature range is -25°C to 85°C. The connector features a threaded fastening type for secure mating.

The shell is made of aluminum alloy with a nickel finish, and contacts are silver-plated. It includes a backshell, cable clamp, and coupling nut. The cable opening accommodates up to 0.335 inches (8.50mm) diameter cable. The material flammability rating is UL94 V-0.

This connector is suitable for various industrial and commercial applications requiring reliable power and signal connections. The RoHS and REACH compliance are indicated but unverified. No datasheet is available.

SRCN6A13-3P Quick Information

Product Type: Circular Connector Plug

Canonical Name: JAE Electronics SRCN6A13-3P Circular Connector Plug, 3 Position, Male Pins, Solder Cup

Subcategory: Plug

SRCN6A13-3P Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SRCN6A13-3P Estimated Pricing

Qty	Low	High
1+	$9.62	$9.62
10+	$8.17	$8.17
25+	$7.66	$7.66
50+	$7.29	$7.29
100+	$6.94	$6.94
250+	$6.51	$6.51
500+	$6.20	$6.20
1,000+	$5.90	$5.90

Estimated market price range - modelled values for guidance only, not live distributor offers.

SRCN6A13-3P Features

3 male pins with solder cup termination.
Rated for 10A and 250VAC/350VDC.
Threaded coupling for secure connection.
Nickel-plated aluminum alloy shell.
Includes backshell and cable clamp.

SRCN6A13-3P Applications

Ideal for industrial power connections.
Suitable for signal and control circuits.
Used in harsh environment cable assemblies.

SRCN6A13-3P FAQs

7 frequently asked questions generated from this part’s specifications.

How many contacts does the SRCN6A13-3P have?

3 male pins.

What is the current rating of this connector?

10 A.

What is the voltage rating?

250 VAC and 350 VDC.

What is the mounting type?

Free hanging (in-line).

What is the operating temperature range?

-25°C to 85°C.

What termination style does this connector use?

Solder cup.

What is the shell material and finish?

Aluminum alloy with nickel finish.

Category	Circular Connector Assemblies
Manufacturer Name	JAE Electronics
Cable Opening	0.335" (8.50mm)
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish	Silver
Current Rating (Amps)	10 A
Fastening Type	Threaded
Features	Backshell, Cable Clamp, Coupling Nut
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	3
Operating Temperature	-25°C ~ 85°C
Orientation	N (Normal)
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size	13-3
Tape & Reel	No
Termination	Solder Cup
Termination Style	Solder Cup
Voltage Rating	250 VAC V
