Mfr Part #:

SRCN2A13-3S

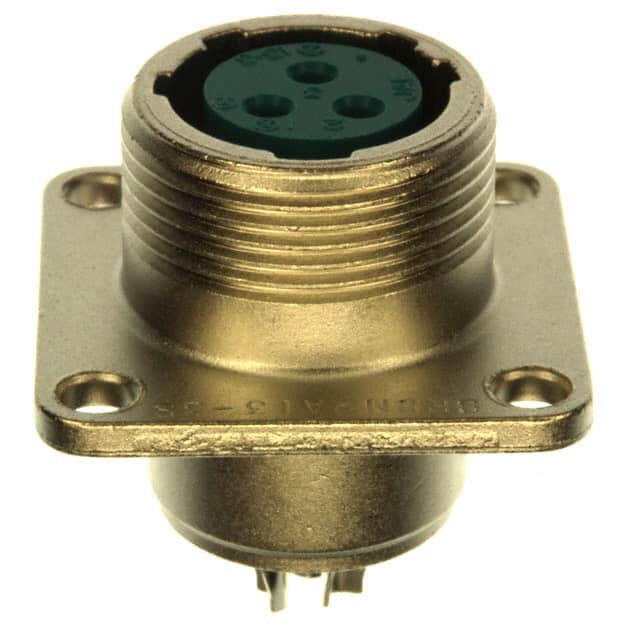

JAE Electronics SRCN2A13-3S is a 3-position circular connector receptacle with female sockets, panel mount, solder cup termination, and threaded coupling. Rated for 10A and 250VAC/350VDC.

✓ Total Stock: 197 pcs

$ Price Range: $3.78 - $7.02

SRCN2A13-3S Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	197 pcs On Request	197 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SRCN2A13-3S Description

Short technical summary and product information.

The JAE Electronics SRCN2A13-3S is a circular connector receptacle designed for reliable signal and power connections in demanding environments. It features 3 female socket contacts with silver finish, housed in a nickel-plated aluminum alloy shell. The connector uses a threaded fastening mechanism for secure mating and offers a solder cup termination style for easy field wiring.

Electrical ratings include a current rating of 10A and a voltage rating of 250VAC or 350VDC. The operating temperature range spans -25°C to 85°C, making it suitable for industrial and commercial applications. The shell size is 13-3 with a normal (N) orientation.

This connector is designed for panel mount installation with a flange mounting feature. The insulator material meets UL94 V-0 flammability rating. The silver contact finish provides good conductivity and corrosion resistance.

SRCN2A13-3S Quick Information

Product Type: Circular Connector Assembly

Series: SRCN

Canonical Name: JAE Electronics SRCN2A13-3S Circular Connector Receptacle, Female Sockets, 3 Position, Panel Mount, Solder Cup

Subcategory: Receptacle

SRCN2A13-3S Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SRCN2A13-3S Estimated Pricing

Qty	Low	High
1+	$7.02	$7.02
10+	$5.58	$5.58
25+	$5.23	$5.23
50+	$4.98	$4.98
100+	$4.74	$4.74
250+	$4.44	$4.44
500+	$4.23	$4.23
1,000+	$4.03	$4.03
2,500+	$3.78	$3.78

Estimated market price range - modelled values for guidance only, not live distributor offers.

SRCN2A13-3S Features

3 female socket contacts with silver finish.
Panel mount with flange for secure installation.
Solder cup termination for easy wiring.
Threaded coupling for reliable mating.
Rated 10A at 250VAC/350VDC.

SRCN2A13-3S Applications

Used in industrial control panel wiring.
Suitable for power and signal connections.
Ideal for harsh environment applications.
Common in commercial equipment interconnects.

SRCN2A13-3S FAQs

7 frequently asked questions generated from this part’s specifications.

What is the connector type of SRCN2A13-3S?

Receptacle, Female Sockets.

How many positions does this connector have?

3 positions.

What is the current rating of SRCN2A13-3S?

10A.

What is the voltage rating?

250VAC, 350VDC.

What mounting type does this connector use?

Panel Mount with flange.

What is the termination style?

Solder Cup.

What is the operating temperature range?

-25°C to 85°C.

Category	Circular Connector Assemblies
Manufacturer Name	JAE Electronics
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish	Silver
Current Rating (Amps)	10A
Fastening Type	Threaded
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Positions	3
Operating Temperature	-25°C ~ 85°C
Orientation	N (Normal)
Primary Material	Metal
SVHC Present	Not Present
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size	13-3
Tape & Reel	No
Termination	Solder Cup
Termination Style	Solder Cup
Voltage Rating	250VAC, 350VDC
