SRC4392IPFBR
Texas Instruments
The Texas Instruments SRC4392IPFBR is a high-end, two-channel asynchronous sample rate converter. It supports sampling frequencies up to 216kHz and features I2C/SPI control interfaces.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,616 pcs
|
3616 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Control Interface | |
| Function | |
| Interface | |
| Lead Spacing | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Specifications | |
| Supplier Device Package | |
| Voltage |
The Texas Instruments SRC4382IPFBR is a versatile two-channel asynchronous sample rate converter (SRC) with integrated digital audio capabilities. It is designed to handle a wide range of audio applications, supporting input and output sampling frequencies up to 216kHz and data word lengths up to 24 bits.
The device features digital audio interfaces such as AES/EBU and S/PDIF, along with I2C and SPI control interfaces for flexible system integration. It offers excellent jitter attenuation characteristics and supports automatic detection of input-to-output sampling ratios with a wide conversion range from 16:1 to 1:16.
Key electrical specifications include a typical dynamic range of 128dB (A-weighted) and a total harmonic distortion and noise (THD+N) of -125dB typical with a full-scale input. The SRC4382IPFBR operates from a core voltage of +1.8V and an I/O voltage of +3.3V.

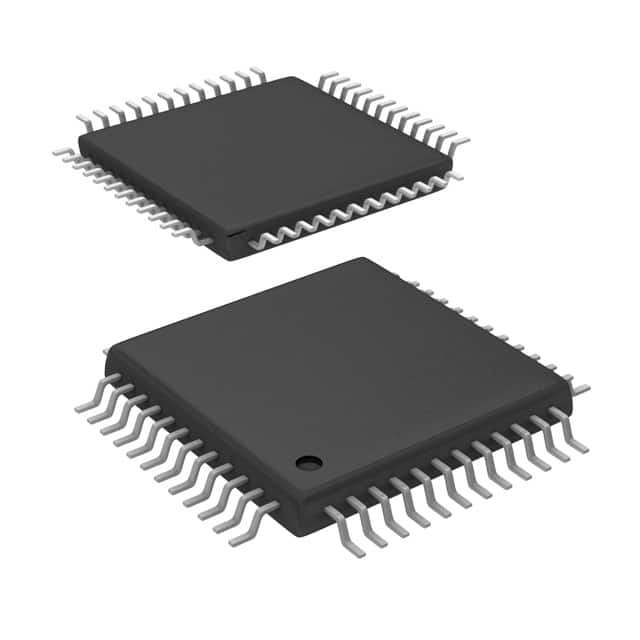

Packaged in a 48-TQFP (7x7 mm) surface-mount package, this component is suitable for digital audio recorders and mixing desks. It also includes features like digital de-emphasis filtering and digital output attenuation functions.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.87 | $6.87 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SRC4382IPFBR supports input and output sampling frequencies up to 216kHz.
The SRC4382IPFBR supports AES/EBU and S/PDIF digital audio interfaces.
The SRC4382IPFBR features I2C and SPI control interfaces.
The operating temperature range for the SRC4382IPFBR is -40°C to 85°C.
The SRC4382IPFBR has a typical dynamic range of 128dB with a -60dB input (A-weighted).
The SRC4382IPFBR is available in a 48-TQFP (7x7 mm) package for surface mounting.
