| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

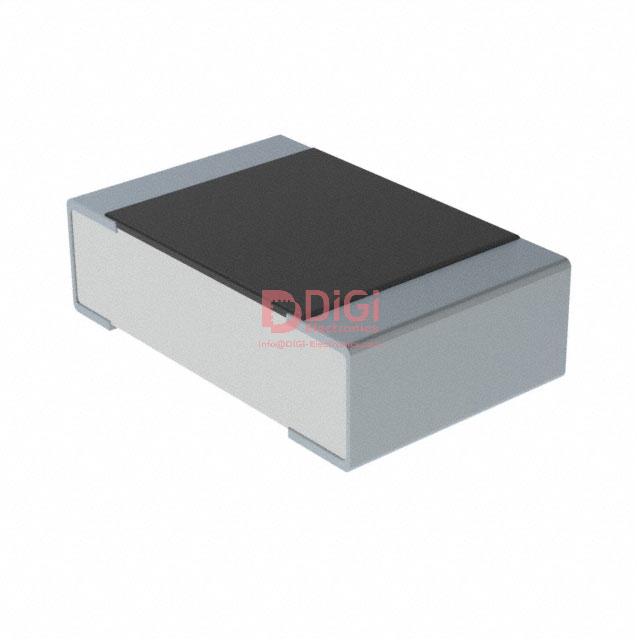

The SR733ATTER825F from KOA Speer Electronics is a surface mount chip resistor designed for current sensing applications. It features a thick film construction and a resistance value of 825 mΩ with a tight tolerance of ±1%.
This resistor is rated for 1W of power and operates within a temperature range of -55°C to 150°C. It boasts a temperature coefficient of ±100ppm/°C, ensuring stable performance under varying thermal conditions. The component is qualified to AEC-Q200 standards, making it suitable for automotive applications.
Packaged in a 2512 (6432 Metric) case size, the SR733ATTER825F is designed for reflow and flow soldering. Its dimensions are 6.30mm in length and 3.10mm in width, with a height of 0.70mm. The resistor has 2 terminations and is RoHS3 compliant.
Key specifications include its 825 mΩ resistance, ±1% tolerance, 1W power rating, and AEC-Q200 qualification. These features make it a reliable choice for current detection in power supplies and motor circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 825 mΩ.
The tolerance is ±1%.
The power rating is 1W.
The temperature coefficient is ±100ppm/°C.
The operating temperature range is -55°C to 150°C.
The resistor is available in a 2512 (6432 Metric) package size.
Yes, the SR733ATTER825F resistor is AEC-Q200 qualified.
