| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,800 pcs
|
1800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-04-21 02:17:00 |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

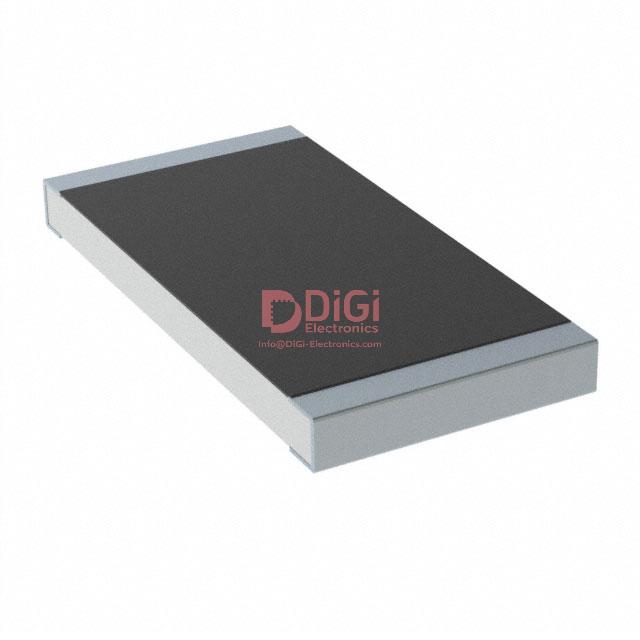

The KOA Speer Electronics SR733ATTER47J is a surface mount chip resistor designed for current detection applications in power supplies and motor circuits. It features a resistance value of 470 mOhms with a tolerance of ±5% and a power rating of 1W.
This resistor operates within a temperature range of -55°C to 150°C and has a temperature coefficient of ±200ppm/°C. It is constructed with thick film technology and comes in a 2512 (6432 Metric) package size, measuring 6.30mm in length and 3.10mm in width.
The SR733ATTER47J is AEC-Q200 qualified, indicating its suitability for automotive applications. It is also described as moisture resistant. The component is suitable for both reflow and flow soldering processes. Products with lead-free terminations meet EU RoHS requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 470 mOhms.
The power rating is 1W.
The tolerance is ±5%.
The operating temperature range is -55°C to 150°C.
The resistor is available in a 2512 (6432 Metric) package.
Yes, the SR733ATTER47J resistor is AEC-Q200 qualified.
