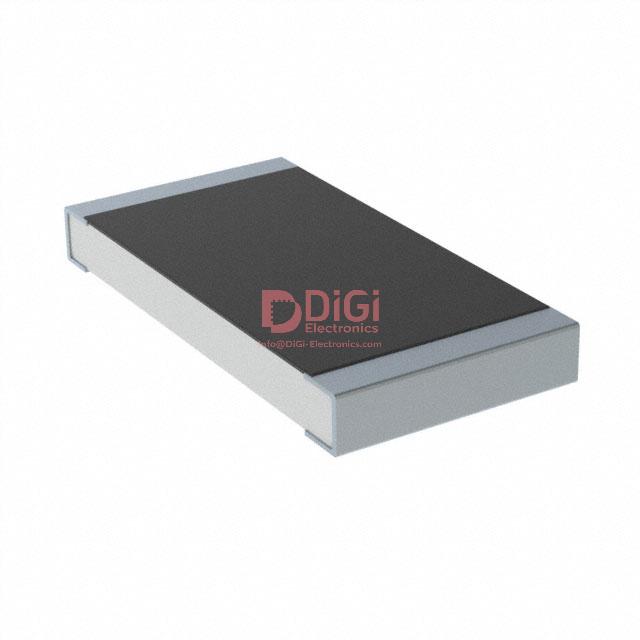

The KOA Speer Electronics SR732ETTDR130F is a surface mount chip resistor from the SR73 series, specifically designed for current detecting applications in power supplies and motor circuits. It offers a resistance value of 130 mOhms with a tight tolerance of ±1% and a power rating of 0.5W.
This resistor is constructed with thick film technology and operates within a temperature range of -55°C to 150°C, with a temperature coefficient of ±100ppm/°C. It meets Automotive AEC-Q200 standards, indicating its suitability for automotive applications. The component is housed in a 1210 (3225 Metric) package, measuring 3.20mm in length, 2.60mm in width, and 0.70mm in height, with two terminations.
It is suitable for both reflow and flow soldering processes. Products with lead-free terminations meet EU RoHS requirements. The component is also noted as Moisture Resistant and is AEC-Q200 tested.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 130 mOhms.
The tolerance is ±1%.
The power rating is 0.5W.
The temperature coefficient is ±100ppm/°C.
The operating temperature range is -55°C to 150°C.
The resistor is available in the 1210 (5025 Metric) package size.
Yes, it is rated AEC-Q200 and features automotive-specific characteristics.
