| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
19 pcs
|
19 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

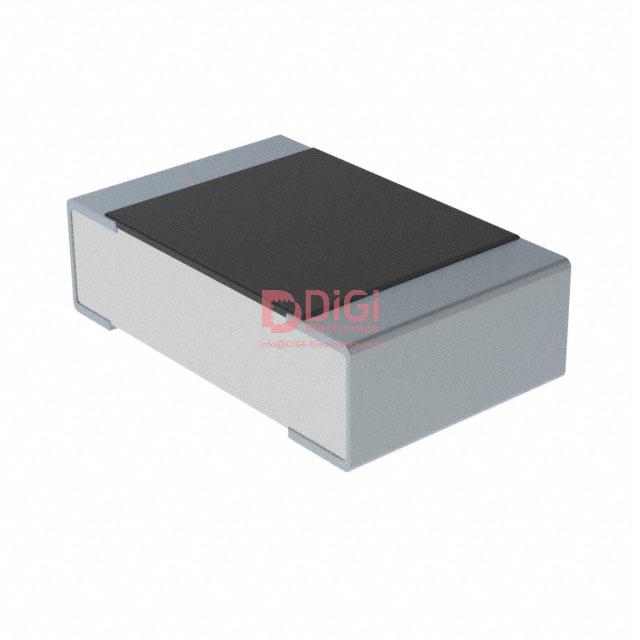

The KOA Speer Electronics SR732BTTDR910F is a surface mount chip resistor designed for current sensing applications. It belongs to the SR73 series and utilizes thick film technology.
Key electrical specifications include a resistance value of 910 mΩ with a tight tolerance of ±1%. The power rating is 0.333W (1/3W), and it has a temperature coefficient of ±100ppm/°C. The operating temperature range is from -55°C to 150°C.
This component is qualified to AEC-Q200 standards, indicating its suitability for automotive applications. It also features moisture resistance. The resistor is housed in a 1206 (3216 Metric) package, measuring 3.20mm in length, 1.60mm in width, and 0.70mm in height.
Suitable for reflow and flow soldering, this resistor is designed for high reliability and performance in power supply and motor control circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 910 mΩ.
The tolerance is ±1%.
The power rating is 0.333W, or 1/3W.
The temperature coefficient is ±100ppm/°C.
The operating temperature range is -55°C to 150°C.
The resistor is in a 1206 (3216 Metric) package.
Yes, the SR732BTTDR910F is AEC-Q200 Tested.
