| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Resistance | |
| Contact Material | |
| Country of Origin | |
| Depth | |
| Failure Rate | |
| Height | |
| Length | |
| Number of Poles | |
| Operating Temperature Range | |
| Product Type | |
| Tape & Reel | |
| Terminal Type | |
| Termination Style |

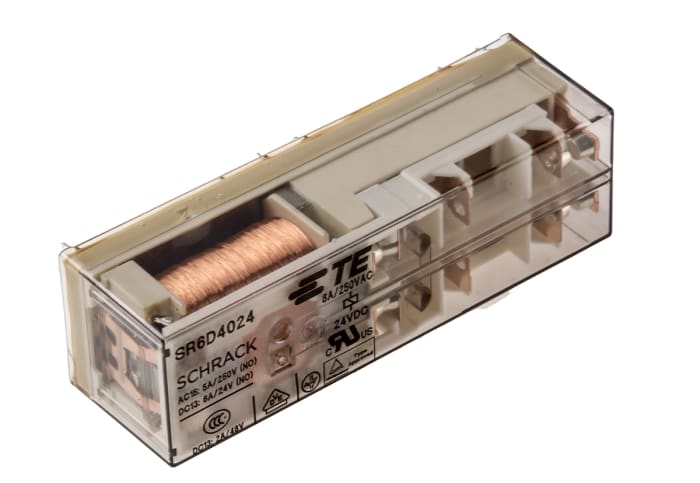

The Schrack SR6D4024 is a force-guided relay designed for reliable switching applications. It operates with a 24VDC coil voltage and offers a robust 8A contact current rating.
This relay features a monostable coil magnetic system and a contact arrangement of 2 normally open (NO) and 2 normally closed (NC) poles. The contact material is Silver Tin Oxide (AgSnO2), known for its durability. It is designed for board mounting with solder pin terminations.
With an operating temperature range of -25°C to 70°C, the SR6D4024 is suitable for various environmental conditions. The enclosure is flux resistant, automatic solder capable, and washable, ensuring ease of assembly and reliability in manufacturing processes. Insulation between contacts and coil is rated at 4000 Vrms.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage for the SR6D4024 relay is 24 VDC.
The contact current rating for the SR6D4024 relay is 8 A.
The SR6D4024 relay has a contact arrangement of 2 normally open (NO) and 2 normally closed (NC) contacts.
The operating temperature range for the SR6D4024 relay is -25°C to 70°C.
The SR6D4024 relay is designed for board mounting.
The coil power rating for the SR6D4024 relay is 1.2 W DC.
The contact material used in the SR6D4024 relay is AgSnO2 (Silver Tin Oxide).
