Mfr Part #:

SR4L069

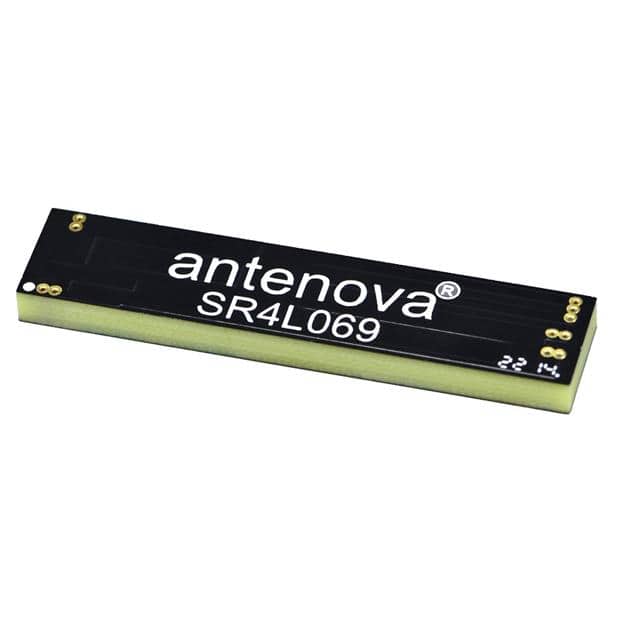

Name: SR4L069
Brand: Antenova
SKU: SR4L069

Mfr Name: Antenova

Description:

ALLANI SMD 5G CELLULAR ANTENNA

Stock on Request

SR4L069 Description

Short technical summary and product information.

ALLANI SMD 5G CELLULAR ANTENNA

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	RF Antennas
Manufacturer Name	Antenova
Antenna Type	Flat Bar
Applications	4G, 5G, DCS, GSM, LTE, WCDMA
Frequency (Center	720.5MHz, 892MHz, 1.94GHz, 2.35GHz, 2.595GHz, 3.55GHz
Frequency Group	Wide Band
Frequency Range	617MHz ~ 698MHz, 824MHz ~ 803MHz, 1.71GHz ~ 894MHz, 2.3GHz ~ 1.518GHz, 2.5GHz ~ 1.661GHz, 3.3GHz ~ 2.2GHz,
Gain	-0.2dBi, 1.6dBi, 4.1dBi, 3.4dBi, 5.1dBi, 5.4dBi
Height (Max)	0.130" (3.30mm)
Mounting Type	Surface Mount
Number of Bands	6
RF Family	Cellular
Return Loss	-8.5dB, -8dB, -7.7dB, -5.5dB, -5dB
VSWR	2.2, 2.3, 2.4, 3.3, 3.6
