| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,034 pcs
|
9034 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Applications | |
| Dimensions | |
| Frequency (Center | |
| Frequency Group | |
| Frequency Range | |
| Gain | |
| Height (Max) | |
| Impedance | |
| Mounting Type | |
| Number of Bands | |
| Operating Temperature | |
| Polarization | |
| RF Family | |
| Return Loss | |
| Termination | |
| VSWR | |
| Weight |

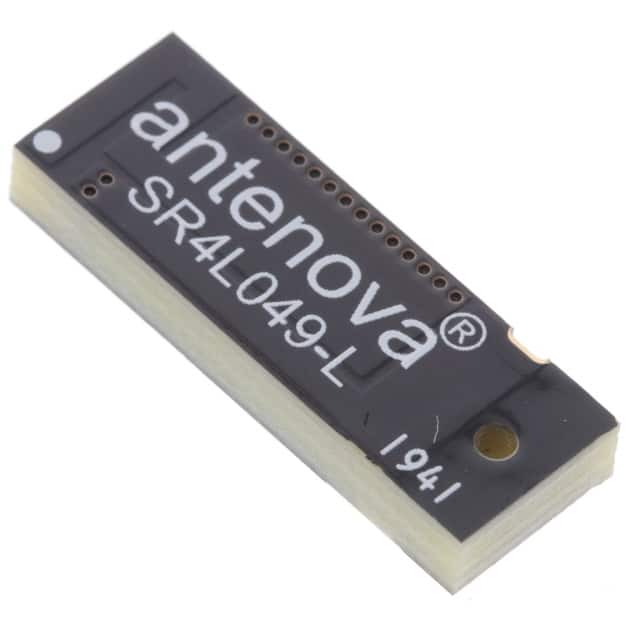

The Antenova Integra SR4L049-L is a high-performance PCB trace antenna designed for 3G and 4G applications, including LTE, GSM, CDMA, and WCDMA.
This ultra-compact antenna measures 23.0 x 8.0 x 3.3mm and features a surface mount design suitable for automated manufacturing. It operates across multiple frequency bands, including 791-960MHz, 1710-2170MHz, 2300-2400MHz, and 2500-2690MHz. The antenna provides peak gains ranging from 1.9dBi to 3.5dBi, with maximum return loss values as low as -4.5dB and VSWR as low as 1.9:1 across its operating frequencies.
Designed for corner placement on the host PCB, the SR4L049-L offers an omnidirectional radiation pattern and is suited for high data-rate MIMO antenna systems. It operates within an automotive temperature rating of -40°C to 140°C and has an impedance of 50 Ω with matching. The antenna is supplied on tape and reel for efficient production.
Key applications include 4G Mi-Fi routers, pico base-stations, CCTV over cellular, drone communications, and automotive systems. The antenna's performance aids in passing PTCRB certification and other wireless standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The antenna supports frequency bands from 791-960MHz, 1710-2170MHz, 2300-2400MHz, and 2500-2690MHz.
The peak gain ranges from 1.9dBi to 3.5dBi across its supported frequency bands.
The maximum return loss is -4.5dB for the 2500-2690MHz band.
The antenna operates in a temperature range of -40°C to 140°C.
The antenna dimensions are 23.0 x 8.0 x 3.3mm.
The antenna is a Surface Mount Device (SMD).
