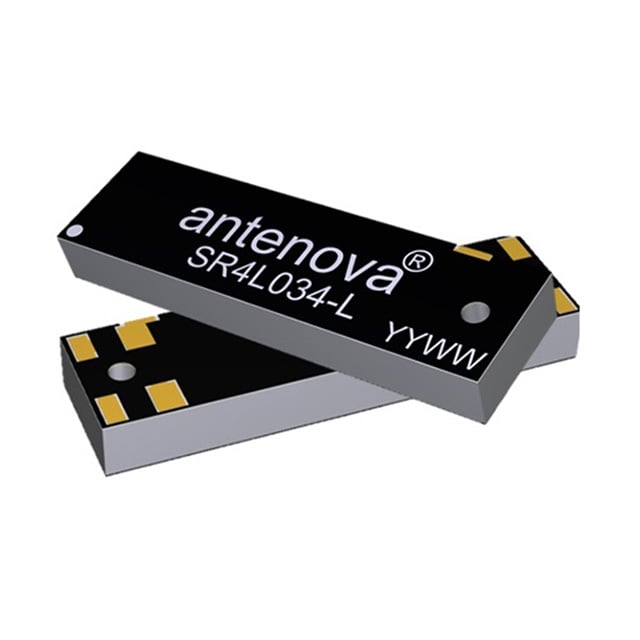

SR4L034-L The Antenova SR4L034-L is a PCB trace RF antenna designed for 3G and 4G applications. It offers a wide frequency range and surface mount capability.
Mfr Part #:

SR4L034-L

Available from 1 distributors
Mfr Name: Antenova
Antenova
The Antenova SR4L034-L is a PCB trace RF antenna designed for 3G and 4G applications. It offers a wide frequency range and surface mount capability.
✓ Total Stock: 168,000 pcs
$ Price Range: $0.99

SR4L034-L Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
168,000 pcs
On Request
168000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SR4L034-L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Antenna Type
Applications
Dimensions
Frequency (Center
Frequency Group
Frequency Range
Gain
Height (Max)
Impedance
Lead Spacing
Mounting Type
Number of Bands
Operating Temperature
Polarization
RF Family
Return Loss
Storage Temperature
Tape & Reel
Termination
VSWR
Weight
View Similar Products (0)

SR4L034-L Description

Short technical summary and product information.

The Antenova SR4L034-L is a compact PCB trace antenna designed for 3G and 4G applications, including LTE, GSM, CDMA, and WCDMA. It operates across multiple frequency bands: 698-960MHz, 1710-2170MHz, 2300-2400MHz, and 2500-2690MHz. This antenna is ideal for MIMO systems and features corner placement for ergonomic design-in on the host PCB.



With a surface mount type and solder termination, the SR4L034-L has dimensions of 28.0 x 8.0 x 3.3mm and a maximum height of 3.30mm. It has an impedance of 50 Ω with matching and operates within an automotive temperature rating of -40°C to 140°C. The antenna is supplied on tape and reel, making it suitable for automated assembly processes.



Key RF characteristics include peak gains ranging from 0.4dBi to 3.6dBi and average gains from -2.3dBi to -1.1dBi across its operating frequencies. Average efficiencies are greater than 55% to 70%. Maximum return loss values range from -4.9dB to -7.0dB, and maximum VSWR values are between 2.5:1 and 3.7:1. The antenna is RoHS compliant.

SR4L034-L Quick Information

Product Type: RF Antenna
Series: Inversa
Canonical Name: Antenova SR4L034-L PCB Trace Antenna
Subcategory: PCB Trace Antenna

SR4L034-L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SR4L034-L Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

SR4L034-L Features

  • Wide band antenna for 3G/4G applications.
  • Surface mount PCB trace design.
  • Operates from -40°C to 140°C.
  • Compact dimensions: 28.0 x 8.0 x 3.3mm.
  • RoHS compliant for environmental considerations.

SR4L034-L Applications

  • Suitable for 3G and 4G mobile devices.
  • Ideal for MIMO system integration.
  • Used in automotive OBD2 systems.
  • Applicable for medical equipment designs.
  • Supports femtocell and picocell base stations.

SR4L034-L FAQs

7 frequently asked questions generated from this part’s specifications.
What frequency ranges does the Antenova SR4L034-L antenna support?

The antenna supports frequencies from 698-960MHz, 1710-2170MHz, 2300-2400MHz, and 2500-2690MHz.

What is the peak gain of the SR4L034-L antenna in the 1710-2170MHz band?

The peak gain in the 1710-2170MHz band is 3.5dBi.

What is the maximum VSWR for the SR4L034-L antenna in the 2500-2690MHz band?

The maximum VSWR in the 2500-2690MHz band is 3.7:1.

What is the operating temperature range for the Antenova SR4L034-L antenna?

The antenna operates from -40°C to 140°C.

What are the dimensions of the SR4L034-L antenna?

The dimensions are 28.0 x 8.0 x 3.3mm.

How is the SR4L034-L antenna mounted?

It is a surface mount device.

Is the Antenova SR4L034-L antenna RoHS compliant?

Yes, the SR4L034-L antenna is RoHS compliant.
