| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40,000 pcs
|
40000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
271 pcs
|
271 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Applications | |
| Average Efficiency | |
| Frequency (Center | |
| Frequency Group | |
| Frequency Range | |
| Gain | |
| Height | |
| Height (Max) | |
| Impedance | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Bands | |
| Polarization | |
| Product Type | |
| RF Family | |
| Return Loss | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| VSWR | |
| Width |

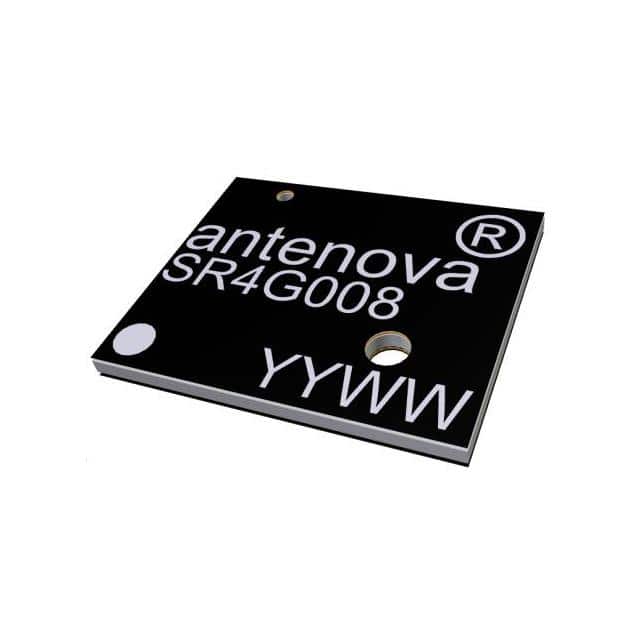

The Antenova SR4G008 is a chip-type RF antenna designed for navigation applications, supporting GNSS, GLONASS, Galileo, and Beidou systems. It operates within a frequency range of 1.559GHz to 1.609GHz, with a center frequency around 1.561GHz, 1.575GHz, and 1.602GHz.
This antenna offers a gain of 3 dBi and a return loss of -12 dB, with a VSWR of 1.4:1. It features a linear polarization and an average efficiency greater than 75%. The impedance is rated at 50 Ohms.
Mechanically, the SR4G008 has a compact form factor with dimensions of 7 mm in length, 5.8 mm in width, and a maximum height of 0.4 mm. It is designed for surface mount (SMD/SMT) applications with a solder termination style. The operating temperature range is from -40 C to +125 C.
The antenna is packaged on a reel with a factory pack quantity of 1000 units. It is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SR4G008 antenna operates in the frequency range of 1.559GHz to 1.609GHz.
The gain of the SR4G008 antenna is 3 dBi.
The SR4G008 antenna uses surface mount (SMD/SMT) mounting.
The SR4G008 antenna measures 7 mm in length, 5.8 mm in width, and 0.4 mm in height.
The SR4G008 antenna can operate between -40 C and +125 C.
The SR4G008 antenna is RoHS3 Compliant.
The MSL for the SR4G008 antenna is 1 Unlimited.
