| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,039 pcs
|
3039 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,826 pcs
|
2826 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Power Rating | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

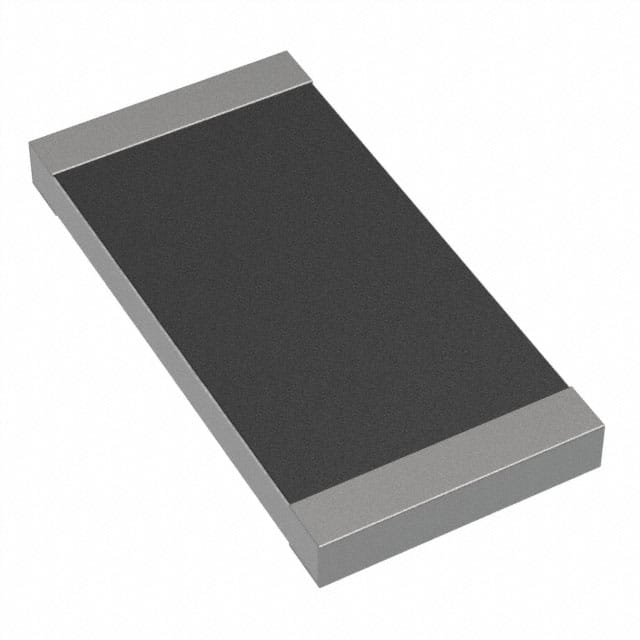

The Yageo SR2512FK-7W100KL is a surface mount chip resistor from the SR series, designed for applications requiring high reliability and performance. It features a resistance value of 100 kΩ with a tight tolerance of ±1% and a power rating of 2W. The resistor operates within a temperature range of -55°C to 155°C and has a temperature coefficient of ±100ppm/°C.
This component is built using thick film technology and comes in a 2512 package size (6.35mm x 3.10mm). It is AEC-Q200 qualified and suitable for automotive applications, offering superior pulse and surge withstanding voltage compared to standard RC series resistors. The resistor is also RoHS3 compliant and has an MSL 1 rating.
Key specifications include a height of 0.65mm, 2 terminations, and features like automotive AEC-Q200 qualification and pulse withstanding capabilities. Its robust design makes it suitable for telecommunications, power supplies, and automotive electronics.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 100 kΩ.
The tolerance is ±1%.
The power rating is 2W.
The operating temperature range is -55°C to 155°C.
The package size is 2512 (6432 Metric).
Yes, it is AEC-Q200 qualified.
