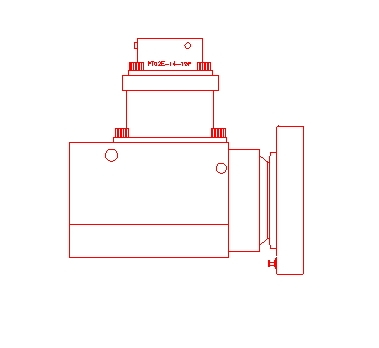

The SR20M Slip Ring Assembly by Michigan Scientific Corporation is engineered for applications requiring electrical connections to rotating machinery. This unit integrates 20 slip ring circuits with an encoder rotation sensor, allowing for the measurement of rotational velocity, angular position, and direction of rotation without utilizing the slip ring connections.
The assembly features a Type M rotor with a 2.000-inch diameter. Instrumentation-quality gold alloy slip rings and brushes ensure high-quality electrical connections for sensors like strain gages and thermocouples. The housing is constructed from lightweight, nickel-plated aluminum, while the rotor is made from high-strength stainless steel. Connection information is permanently engraved on the housing.
Available with or without weatherproof seals, the SR20M offers flexibility for various operating environments. Units with seals are weatherproof and can withstand submersion, operating up to 2000 rpm. For higher speed applications in dry conditions, units without seals can operate up to 4000 rpm. The housing measures approximately 3.5 inches long and weighs about 15 ounces.
The SR20M slip ring assembly has 20 circuits.
The rotor diameter is 2.000 inches.
The current capacity is 0.5A per connection.
With seals, the maximum operating speed is 2000 rpm.
Without seals, the maximum operating speed is 4000 rpm.
Unit torque is 21 inch-ounces with seals and 3 inch-ounces without seals.
