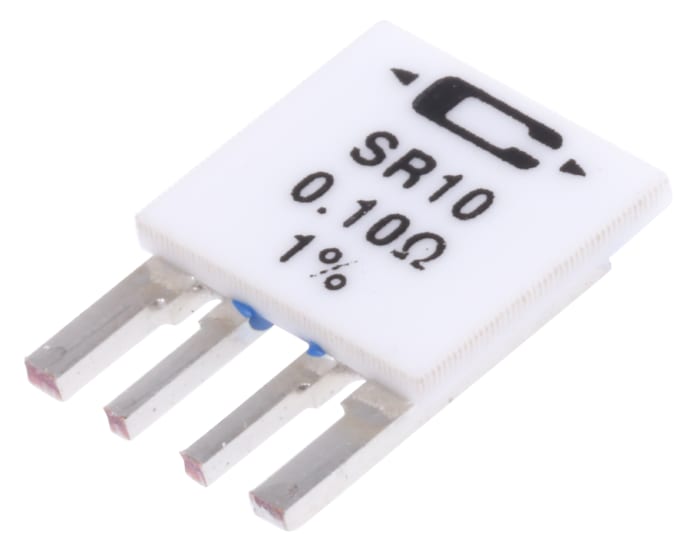

SR10-0.100-1% The Caddock SR10-0.100-1% is a surface mount resistor with 100mΩ resistance and ±1% tolerance. It features a 1W power rating and Micronox resistance film.
Mfr Part #:

SR10-0.100-1%

Available from 1 distributors
Mfr Name: Caddock Electronics Inc.
Caddock Electronics Inc.
The Caddock SR10-0.100-1% is a surface mount resistor with 100mΩ resistance and ±1% tolerance. It features a 1W power rating and Micronox resistance film.
✓ Total Stock: 21 pcs
$ Price Range: $0.05

SR10-0.100-1% Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
21 pcs
On Request
21 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SR10-0.100-1% Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Failure Rate
Height
Length
Mounting Type
Power Rating
Resistance
Temperature Coefficient
Termination Style
Tolerance
Width
View Similar Products (0)

SR10-0.100-1% Description

Short technical summary and product information.

This Caddock SR10-0.100-1% is a precision surface mount resistor designed for current monitoring and control applications. It offers a low resistance value of 100mΩ with a tight tolerance of ±1% and a power rating of 1W.



The resistor utilizes Micronox resistance film technology and has a non-inductive design with terminals constructed for Kelvin connections. It operates within a temperature range of -15°C to 105°C and has a temperature coefficient of ±50 ppm/°C.



With a package/case size designated as SR10, this component is suitable for surface mounting and comes in bulk packaging. Its dimensions are 9.27mm in length, 2.29mm in width, and 12.58mm in height, with 4 pins.



This part is ideal for applications requiring accurate current sensing. Its robust construction and precise electrical characteristics make it a reliable choice for various electronic designs.

SR10-0.100-1% Quick Information

Product Type: Surface Mount Resistor
Series: SR10
Canonical Name: Caddock SR10-0.100-1% Surface Mount Resistor
Subcategory: Precision Trimmed Resistors

SR10-0.100-1% Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SR10-0.100-1% Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

SR10-0.100-1% Features

  • 100mΩ resistance value.
  • Tight ±1% tolerance.
  • 1W power rating.
  • Micronox resistance film technology.
  • Surface mount package.

SR10-0.100-1% Applications

  • Used in precision measurement circuits
  • Suitable for calibration applications
  • Ideal for high-accuracy electronic systems
  • Applied in thermal management circuits

SR10-0.100-1% FAQs

5 frequently asked questions generated from this part’s specifications.
What is the resistance of the SR10-0.100-1% resistor?

The resistance is 100mΩ.

What is the tolerance of this Caddock resistor?

The tolerance is ±1%.

What is the power rating for the SR10-0.100-1%?

The power rating is 1W.

What is the operating temperature range?

The operating temperature range is -15°C to 105°C.

What type of resistance film does this resistor use?

It uses Micronox resistance film.
