| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination |

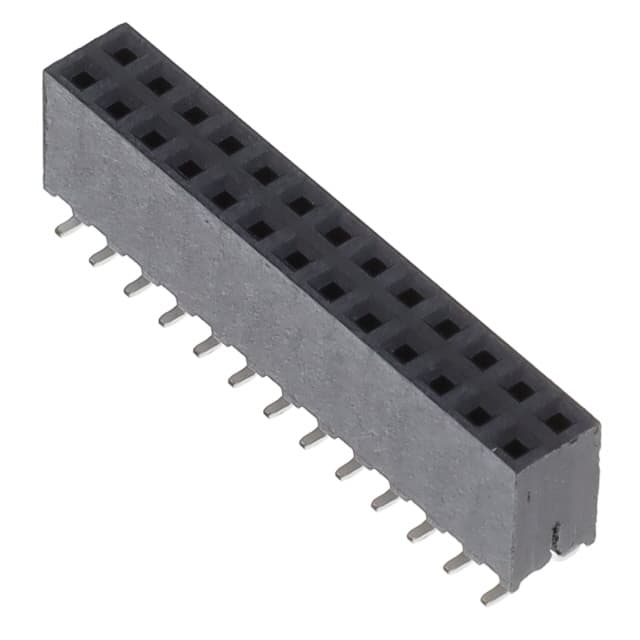

The Samtec SQW-113-01-F-D-VS is a 26-position receptacle connector designed for board-to-board or cable applications. It features a 2.00mm (0.079") pitch and dual-row configuration with all positions loaded. The connector uses forked contacts with a tin finish (3.00µin thickness) and is rated for 3.8A per contact.
This surface mount connector employs solder termination and a push-pull fastening mechanism. The black insulation is rated UL94 V-0 for flammability, and the operating temperature range spans -55°C to 125°C. The insulation height is 7.62mm (0.300").
The connector is suitable for compact electronic assemblies requiring reliable signal or power connections. Its surface mount design facilitates automated assembly, and the push-pull latch ensures secure mating without additional hardware.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.90 | $2.90 |
| 21+ | $2.75 | $2.75 |
| 42+ | $2.43 | $2.43 |
| 105+ | $2.35 | $2.35 |
| 504+ | $2.13 | $2.13 |
| 1,008+ | $1.88 | $1.88 |
| 2,520+ | $1.41 | $1.41 |
| 5,019+ | $1.40 | $1.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
26 positions in a dual-row configuration, all loaded.
2.00mm (0.079 inches).
3.8A per contact.
Surface mount with solder termination.
-55°C to 125°C.
Push-pull.
Tin with 3.00µin thickness.
