| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination |

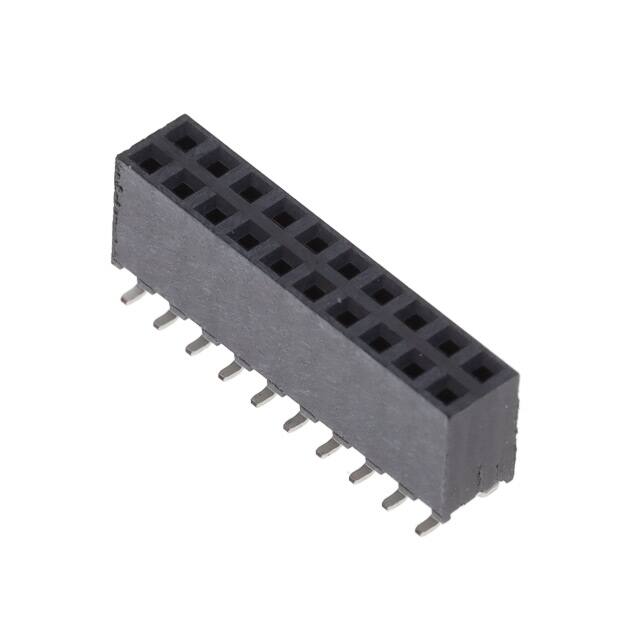

The Samtec SQW-110-01-L-D-VS-K-TR is a 20 position, 2 row receptacle from the SQW series. It features a 2.00mm pitch and 2.00mm row spacing, making it suitable for board-to-board or cable applications. The connector uses forked contacts with a tin finish and a contact finish thickness of 10.0µin (0.25µm).
This surface mount connector is designed for solder termination and includes a pick and place feature for automated assembly. The black insulator has a height of 7.62mm and is made from material with a UL94 V-0 flammability rating. The operating temperature range is -55°C to 125°C.
The push-pull fastening type provides secure mating while allowing for easy disconnection. All 20 positions are loaded, and the connector is typically supplied in tape and reel packaging for automated manufacturing processes.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.36 | $3.36 |
| 25+ | $3.32 | $3.32 |
| 50+ | $3.27 | $3.27 |
| 100+ | $2.79 | $2.79 |
| 350+ | $2.49 | $2.49 |
| 700+ | $2.25 | $2.25 |
| 2,450+ | $2.17 | $2.17 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 2.00mm.
It has 20 positions arranged in 2 rows.
The current rating is 3.8A per contact.
It is a surface mount connector.
The operating temperature range is -55°C to 125°C.
The contact finish is tin with a thickness of 10.0µin (0.25µm).
The material flammability rating is UL94 V-0.
