| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
58 pcs
|
58 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Plating | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insertion Depth | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating (Maximum @ Mated with TMM) | |
| Voltage Rating (Maximum @ Mated with TMMH) |

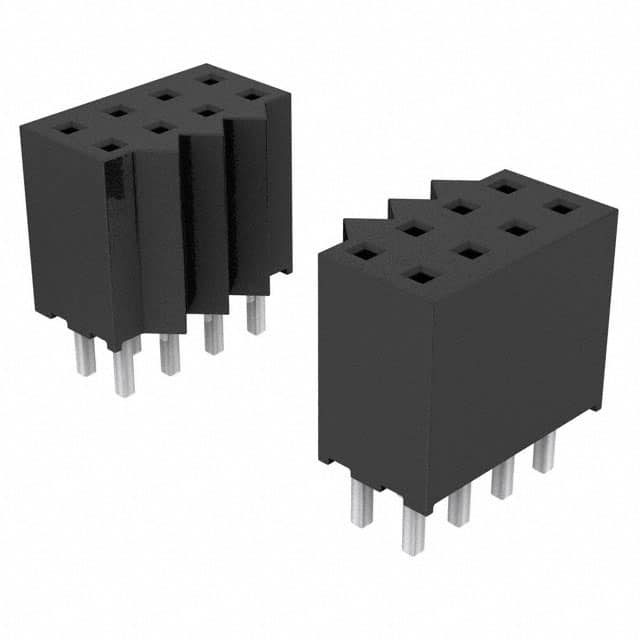

The Samtec SQT-132-01-L-Q is a 128-position, 4-row receptacle from the SQT series. It features a 2.00mm (0.079") pitch and 2.00mm row spacing. The connector uses forked contacts with a gold plating of 10 µ" (0.25 µm) over 50 µ" nickel on the contact area, while the tail is matte tin. The contact material is phosphor bronze, and the insulator is black liquid crystal polymer (LCP) with a UL94 V-0 flammability rating.
Electrically, each contact is rated for 5.1A. The voltage rating is 281 VAC when mated with a TMM header, and 250 VAC when mated with a TMMH header. The operating temperature range is -55°C to 125°C. The insertion depth ranges from 2.62 mm to 5.03 mm with a 0.38 mm wipe. The connector is rated for 100 mating cycles with the specified gold plating.
Mounting is through hole with solder termination. The fastening type is push-pull. The connector is lead-free solderable as confirmed by the datasheet. It is designed for high-density PCB interconnections and can be mated with Samtec TMM or TMMH header strips.
| Qty | Low | High |
|---|---|---|
| 1+ | $17.00 | $17.00 |
| 8+ | $16.39 | $16.39 |
| 24+ | $16.03 | $16.03 |
| 56+ | $15.15 | $15.15 |
| 104+ | $13.80 | $13.80 |
| 256+ | $12.50 | $12.50 |
| 504+ | $11.57 | $11.57 |
| 1,000+ | $11.04 | $11.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
128 positions.
2.00mm (0.079").
5.1A per contact.
281 VAC when mated with TMM, 250 VAC when mated with TMMH.
Through hole.
-55°C to 125°C.
Gold plating of 10 µ" (0.25 µm) over 50 µ" nickel on the contact area, matte tin on the tail.
