| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
55 pcs
|
55 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

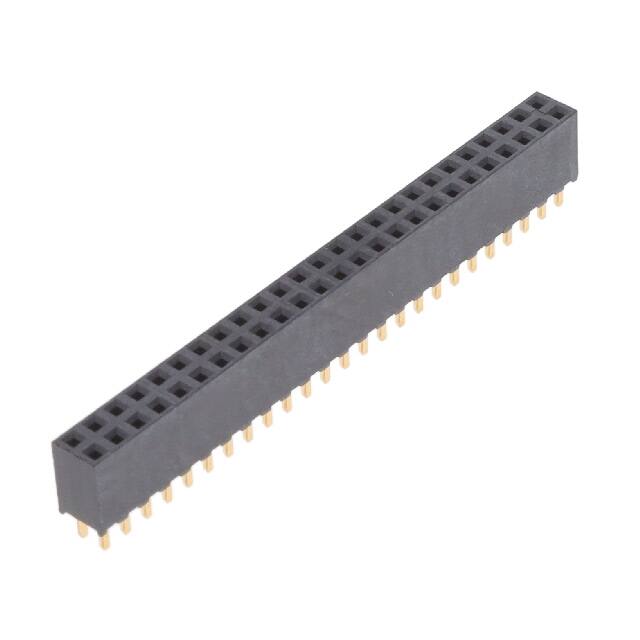

The Samtec SQT-125-01-H-D is a 50-position, 2-row, 2.00mm pitch through-hole receptacle with a push-pull fastening mechanism. It features fork contact style with gold plating (50µin) and is designed for board-to-board or cable connections.
Each contact is rated for 5.1A current, and the operating temperature range spans -55°C to 125°C. The insulation is black UL94 V-0 rated material, and the contact length is 2.29mm with an insulation height of 6.35mm.
Suitable for a variety of interconnect applications requiring compact high-density connectors. The mounting type is through-hole with solder termination, ensuring reliable mechanical attachment.
| Qty | Low | High |
|---|---|---|
| 1+ | $11.83 | $11.83 |
| 110+ | $11.20 | $11.20 |
| 253+ | $10.34 | $10.34 |
| 506+ | $8.48 | $8.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 50 positions, all positions are loaded.
The pitch is 2.00mm (0.079 inches) with the same row spacing.
The current rating is 5.1A per contact.
The mounting type is through hole with solder termination.
The contacts have a gold finish with a thickness of 50.0µin (1.27µm).
The operating temperature range is -55°C to 125°C.
The insulation material has a UL94 V-0 flammability rating.
