| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
80 pcs
|
80 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

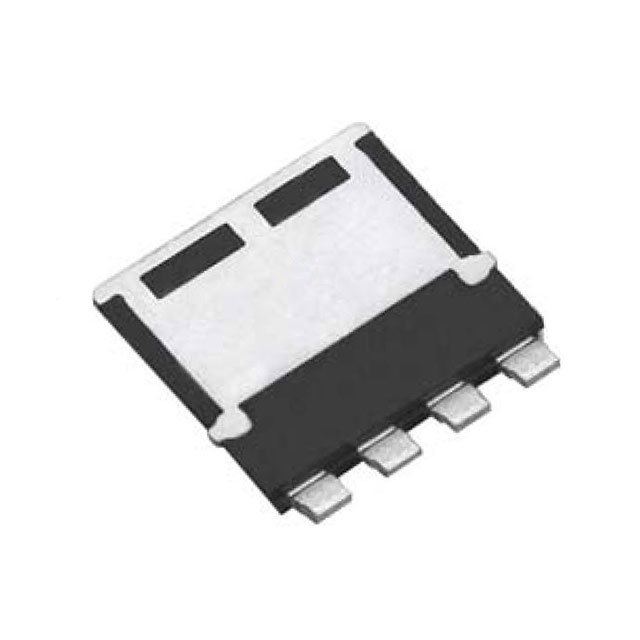

The Vishay Dale SQJQ466E-T1_GE3 is an AEC-Q101 qualified N-Channel Power MOSFET. It is built using TrenchFET® technology, offering robust performance for demanding applications.
This MOSFET boasts a drain-source voltage (Vds) of 60V and a continuous drain current (Id) of 200A at 25°C case temperature. Its low on-resistance (Rds(on)) is 1.9mOhm at 10A and 10V gate-source voltage, minimizing conduction losses. The device operates across a wide temperature range from -55°C to +175°C.
Packaged in an 8x8L PowerPAK, this surface-mount device is suitable for applications requiring high current density and efficient thermal management. The thin profile of 1.9mm is beneficial for space-constrained designs. It is 100% R_g and UIS tested, ensuring reliability.
Key electrical characteristics include a gate charge (Qg) of 180nC at 10V and an input capacitance (Ciss) of 10210pF at 25V. The maximum power dissipation is rated at 150W at 25°C case temperature.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-to-source voltage is 60V.
The maximum continuous drain current is 200A at 25°C case temperature.
The maximum on-resistance is 1.9mOhm at 10A drain current and 10V gate-source voltage.
It comes in a PowerPAK 8x8L surface-mount package.
The operating junction temperature range is -55°C to 175°C.
The maximum power dissipation is 150W at 25°C case temperature.
The maximum gate threshold voltage is 3.5V at 250µA drain current.
