| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
228,000 pcs
|
228000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Drain to Source Voltage (Vdss) | |
| Drive Voltage (Max Rds On, Min Rds On) | |
| FET Type | |
| Gate Charge (Qg) (Max) @ Vgs | |
| Halogen Free | |
| Input Capacitance (Ciss) (Max) @ Vds | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation (Max) | |
| Rds On (Max) @ Id, Vgs | |
| Supplier Device Package | |
| Supplier Package | |
| Technology | |
| Vgs (Max) | |
| Vgs(th) (Max) @ Id |

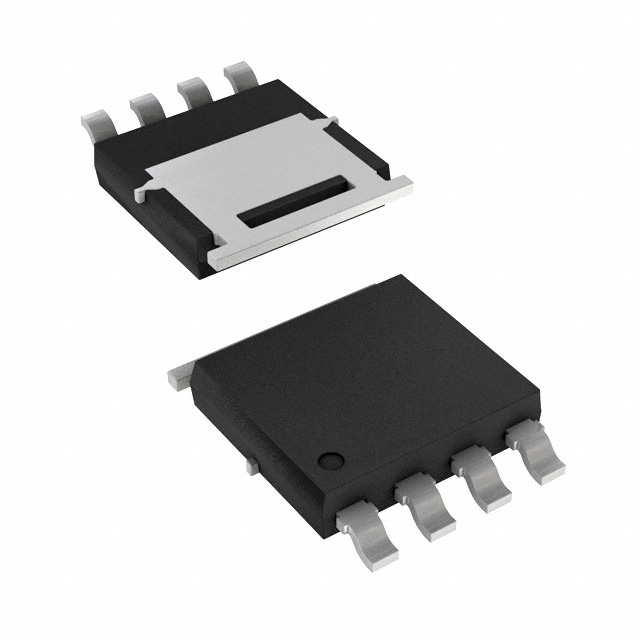

The Vishay Dale SQJA82EP-T1_GE3 is an automotive-grade N-Channel MOSFET designed for high-performance applications. It features a TrenchFET power MOSFET design and is AEC-Q101 qualified, ensuring reliability in demanding environments.
Key electrical specifications include a maximum drain-source voltage of 80V and a continuous drain current of 60A at 25°C. The on-resistance is rated at a low 8.2mOhm at 10A and 10V gate-source voltage. The device operates over a wide temperature range from -55°C to +175°C.
This MOSFET is housed in a PowerPAK SO-8 surface mount package, offering efficient thermal performance with a junction-to-case thermal resistance of 2.2°C/W. It is suitable for various power management applications where high current and voltage handling are required.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.56 | $2.56 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage (Vds) for the SQJA82EP-T1_GE3 is 80V.
The continuous drain current (Id) for the SQJA82EP-T1_GE3 is 60A at 25°C.
The Rds On is a maximum of 8.2mOhm at 10A and 10V gate-source voltage.
The operating junction and storage temperature range is -55°C to +175°C.
The SQJA82EP-T1_GE3 is supplied in a PowerPAK SO-8 surface mount package.
