| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
59 pcs
|
59 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Efficiency | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) |

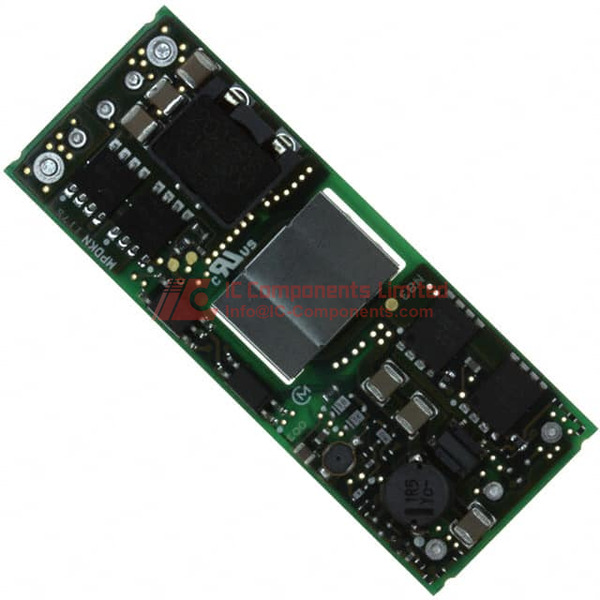

This DC DC converter from POWER-ONE, part number SQE48T20033-NGB0G, is designed for board mount applications. It features a nominal output voltage of 3.3V and can deliver up to 66W of power. The input voltage range is specified from 36V to 75V, with an isolation voltage of 1.5kV.
The converter operates efficiently at 89% and has a maximum output current of 20A. It is designed for a wide operating temperature range of -40°C to 85°C. The dimensions of the module are 56.9mm x 21.9mm x 9.0mm.
Packaged in a tray, this component utilizes a through-hole mounting type. It is compliant with RoHS standards and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal output voltage is 3.3V.
The input voltage range is from 36V to 75V.
The power rating is 66W.
The operating temperature range is -40°C to 85°C.
The dimensions are 56.9mm x 21.9mm x 9.0mm.
Yes, it is RoHS Compliant.
The MSL is 1 Unlimited.
